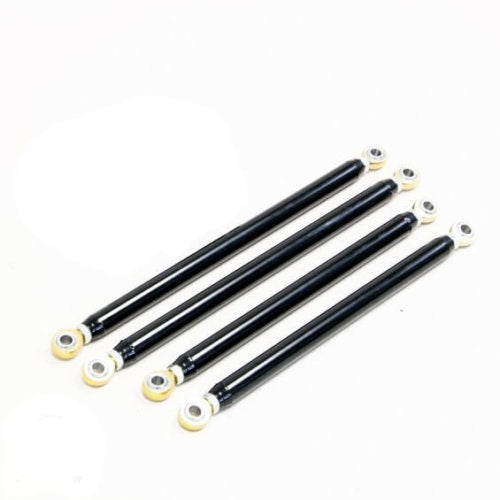

RT Pro's RZR XP 1000 SHD (Super Heavy Duty) Radius Rod Kit
will replace the weak factory radius rods with a substantially stronger design.

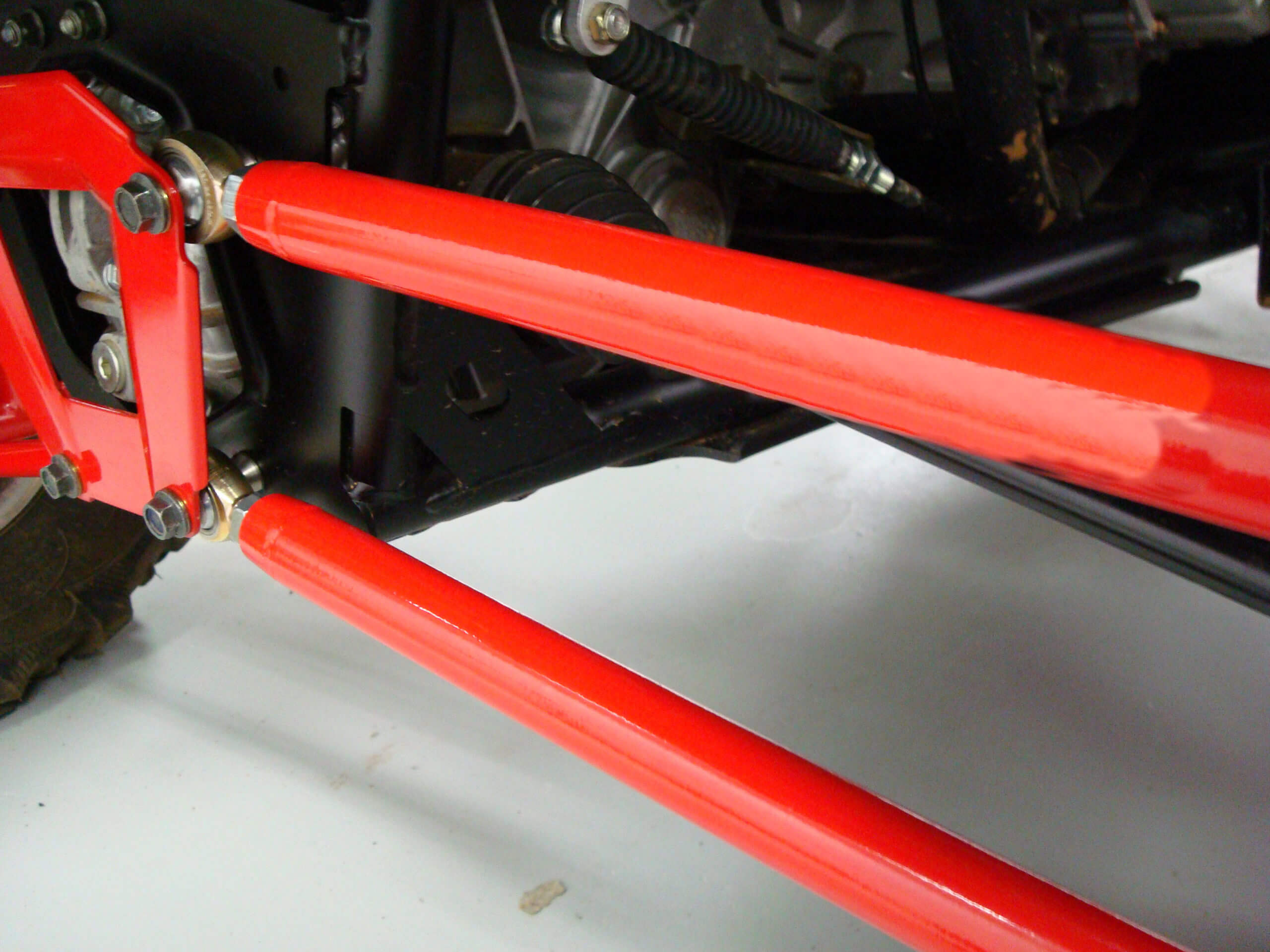

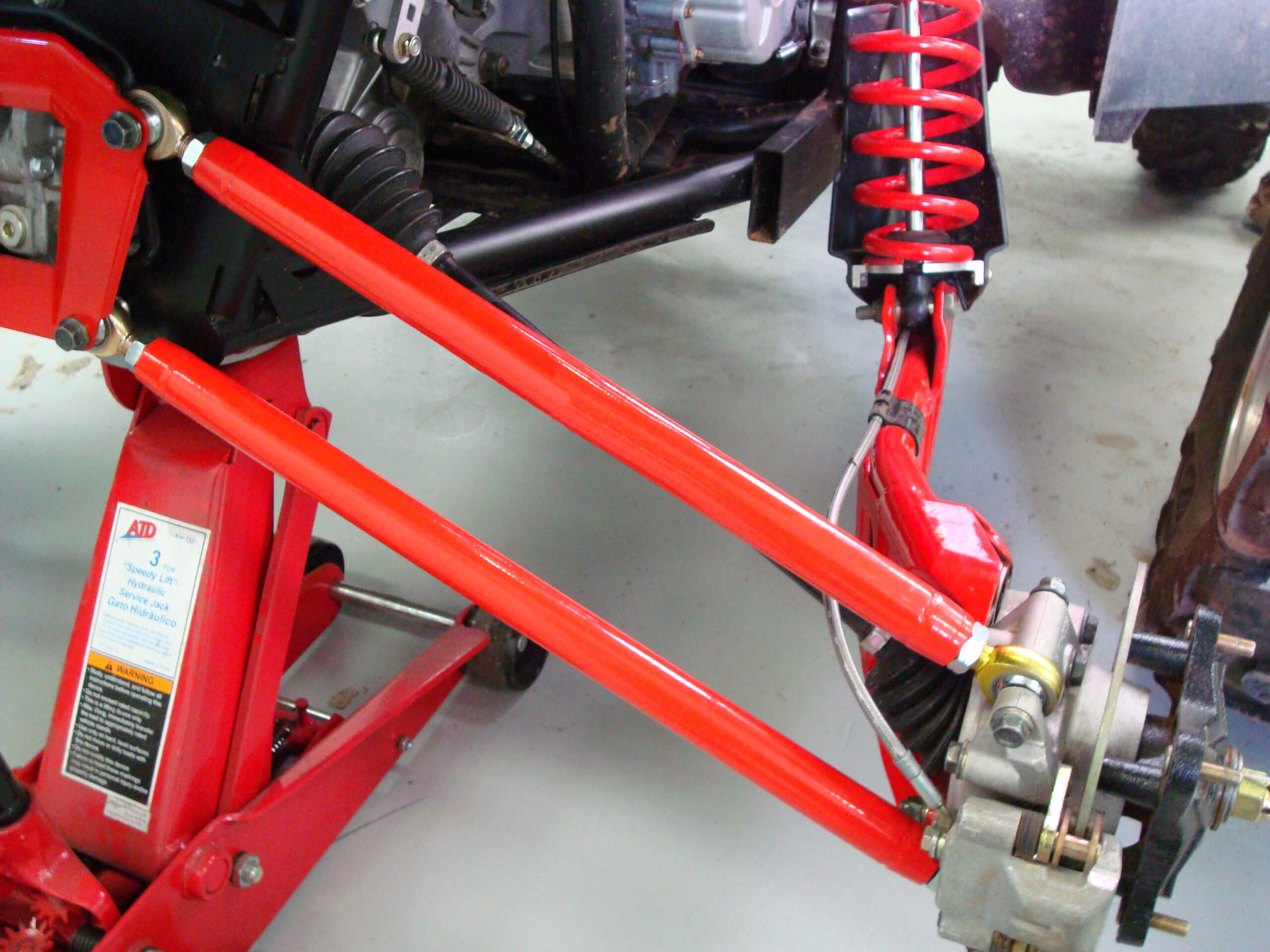

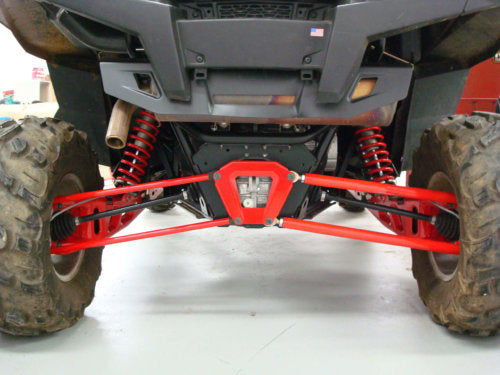

Here's the fix for the weakest link on the RZR XP 1000. These Radius Rods are a
direct bolt-on replacement and work with the OEM trailing arm and
knuckle/spindle. They are 1.2" dia. USA tubing and use 5/8" FK heim joints.
The rods have a little room for adjustments for the inclined rider to tweak the
handling a little bit if desired. The adjustment provided from this kit is the
static camber settings. By adjusting the rear camber one can control how
aggressive the bite of the rear tire is in a corner and find a preferred
balance of understeer / oversteer which is how much the machine pushes or
slides out in a corner. This setting while controlling handling going into a
corner, can also fine tune traction coming out of a turn.
This kit includes the chosen radius rods, heim joints and
high misalignment spacers needed for installation. The factory bolts are
re-used and there is no modification to the vehicle necessary.

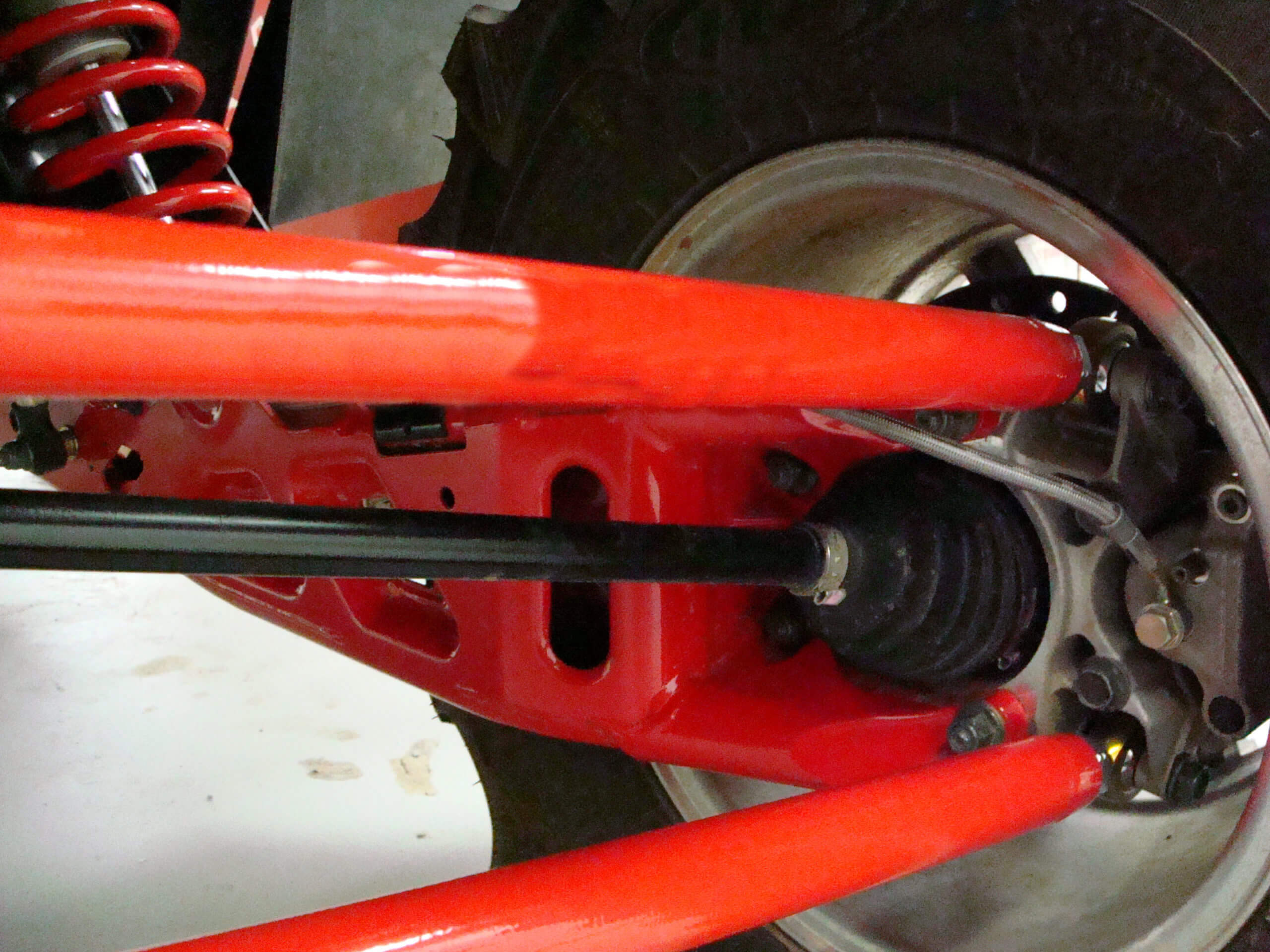

Installation Note: To fit this large of tubing in to this
application, some XP 1000's will require VERY MINOR filing to allow for the
needed clearance of the trailing arm and our lower rods. It's a minimal amount
and shown in our instructions. The affected area is also shown on the last pic
on this page.
