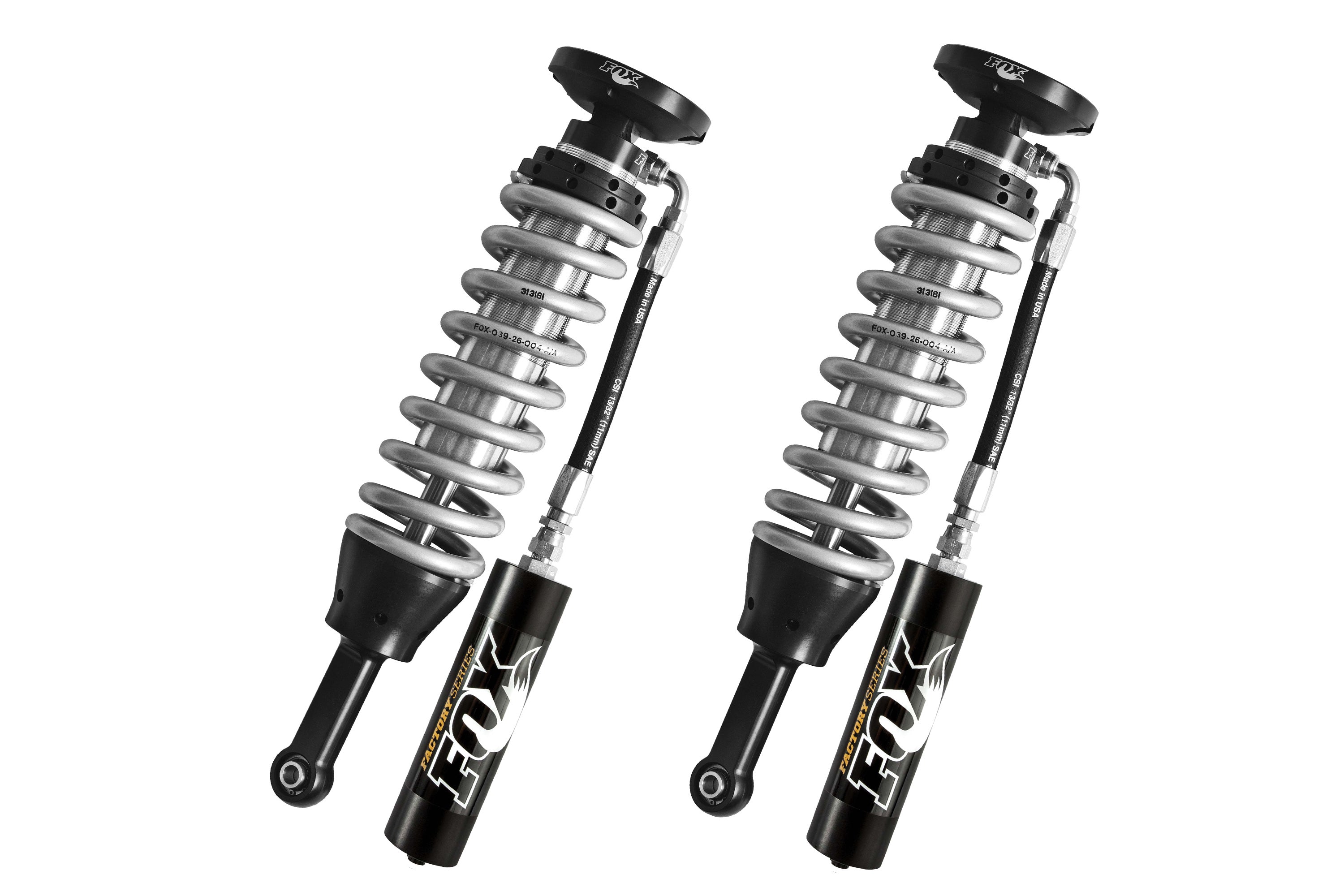

FOX 2.5 Coil-Over Shocks w/ Reservoir | 0-2 Inch Lift | Factory Series | Ford F150 (09-13) 4WD

FOX
SKU: FOX88002634

×
$1,849.95
Subtotal: $1,849.95

I have read the Important Notes and Verified my Vehicle Fitment

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/fox_factory_series_25_rr_coilover_card.jpg

FOX 2.5 Coil-Over Shocks w/ Reservoir | 0-2 Inch Lift | Factory Series | Ford F150 (09-13) 4WD

$1,849.95
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/fox_factory_series_25_rr_coilover_card.jpg

FOX 2.5 Coil-Over Shocks w/ Reservoir | 0-2 Inch Lift | Factory Series | Ford F150 (09-13) 4WD

$1,849.95
OVERVIEW

Give your 2009-2013 Ford F-150 4WD a race-winning technology upgrade to improve damping in any terrain with FOX Factory Series 2.5 Coil-Over shocks with Reservoir. Before any FOX shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. FOX pushes the boundaries to give you that same precise control and race-proven performance you can feel in a bolt-on solution.

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box.

Features & Benefits

  • 2.5-inch smooth bore zinc plated seamless steel body
  • Zinc-plated and double-clear coated for long lasting finish
  • Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Application-specific, adjustable 3.0 Eibach® racing springs
  • 7/8-inch hard chrome-plated steel shafts
  • Application specific valving to maximize performance
IMPORTANT NOTES
  1. Sold as a pair.
INSTALLATION
SPECIFICATION
  • Front Lift Height : 0-2
  • Adjustable Damping : No
  • Compressed Length : 17.61
  • Cylinder Material : Steel
  • Extended Length : 23.04
  • Gas Charged : Yes
  • Lower Mount Code : OEM
  • Lower Mount Type : Eyelet
  • Shaft Diameter : 45143
  • Travel Length : 5.43
  • Type : Coil-Over
  • Upper Mount Code : OEM
  • Upper Mount Type : OEM
FITMENT
2012|Ford|F-150|Platinum|4WD|*|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2011|Ford|F-150|XL|4WD|*|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2013|Ford|F-150|Lariat|4WD|*|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2011|Ford|F-150|Platinum|4WD|*|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2009|Ford|F-150|Platinum|4WD|FLEX|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2011|Ford|F-150|STX|4WD|FLEX|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2012|Ford|F-150|Lariat|4WD|*|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2013|Ford|F-150|Platinum|4WD|*|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2011|Ford|F-150|King Ranch|4WD|*|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2010|Ford|F-150|FX4|4WD|FLEX|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2011|Ford|F-150|Lariat Limited|4WD|GAS|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2010|Ford|F-150|STX|4WD|GAS|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2012|Ford|F-150|XLT|4WD|*|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2009|Ford|F-150|STX|4WD|GAS|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2013|Ford|F-150|Limited|4WD|GAS|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2013|Ford|F-150|XLT|4WD|*|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2013|Ford|F-150|STX|4WD|FLEX|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2009|Ford|F-150|XL|4WD|*|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2011|Ford|F-150|XLT|4WD|*|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2009|Ford|F-150|FX4|4WD|FLEX|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2009|Ford|F-150|Lariat|4WD|FLEX|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2010|Ford|F-150|Lariat|4WD|FLEX|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2013|Ford|F-150|FX4|4WD|*|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2009|Ford|F-150|King Ranch|4WD|FLEX|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2010|Ford|F-150|Platinum|4WD|FLEX|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2010|Ford|F-150|XLT|4WD|*|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2012|Ford|F-150|FX4|4WD|*|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2011|Ford|F-150|Lariat|4WD|*|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2012|Ford|F-150|XL|4WD|*|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2013|Ford|F-150|King Ranch|4WD|*|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2012|Ford|F-150|King Ranch|4WD|*|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2009|Ford|F-150|XLT|4WD|*|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2011|Ford|F-150|FX4|4WD|*|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2010|Ford|F-150|King Ranch|4WD|FLEX|4|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2013|Ford|F-150|XL|4WD|*|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2010|Ford|F-150|XL|4WD|*|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5";2012|Ford|F-150|STX|4WD|FLEX|*|48166|Shock Absorber Kit|Each|1|2009-2013 Ford F150 4WD 2in C/O Conversion|"Replace factory struts with coilovers that provide 0-2"" of lift on 4 wheel drive models of F-150 truck with model years ranging from 2009 to 2013."|Kit sold as pair. One pair required per vehicle.|Front|22|2"|SRW|31" x 10.5"|20" x 9"|5"|31" x 10.5"|18" x 9"|5"|31" x 10.5"|17" x 9"|5"
