7 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (20-22) 4WD | Diesel

Zone Offroad
SKU: ZONF64F

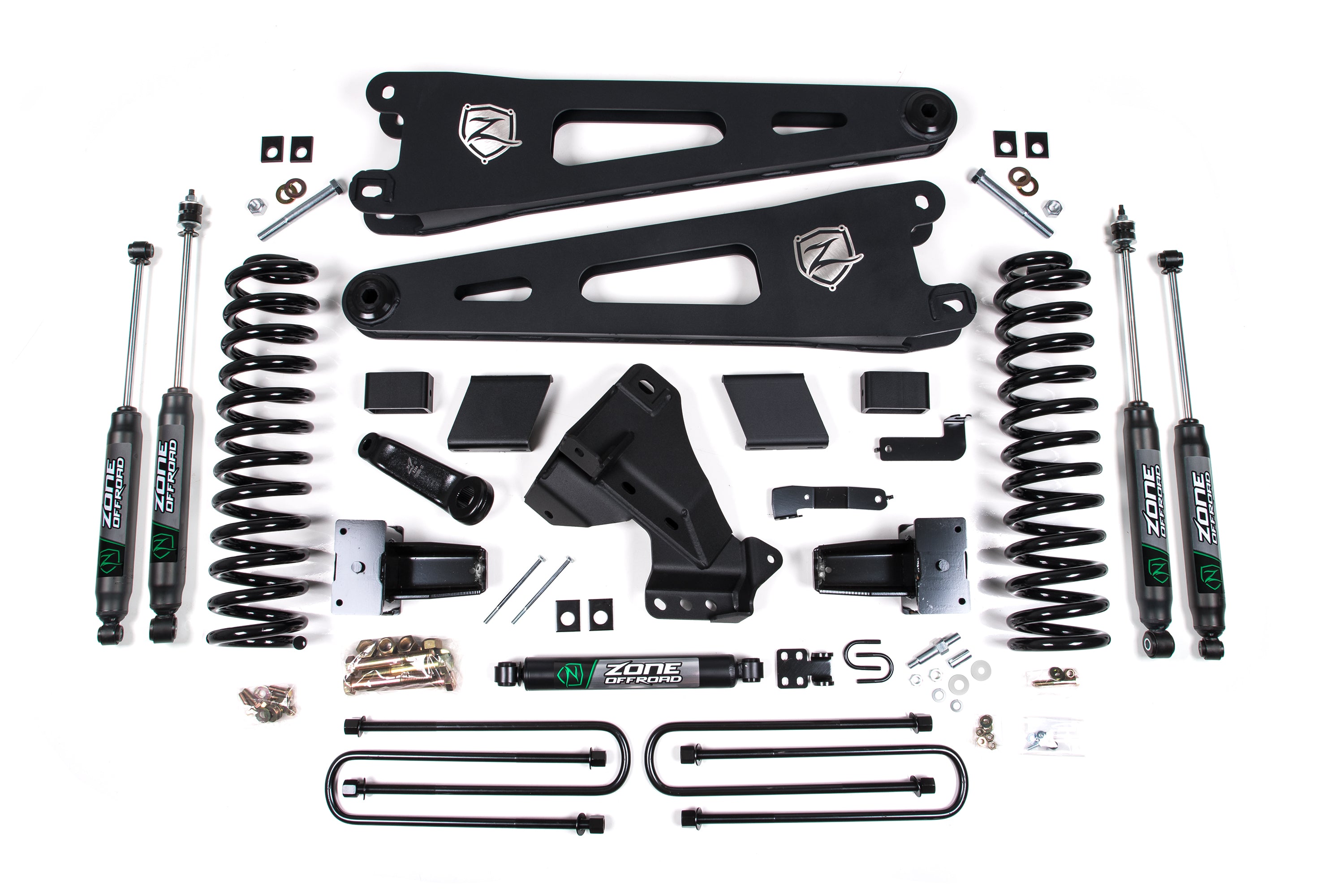

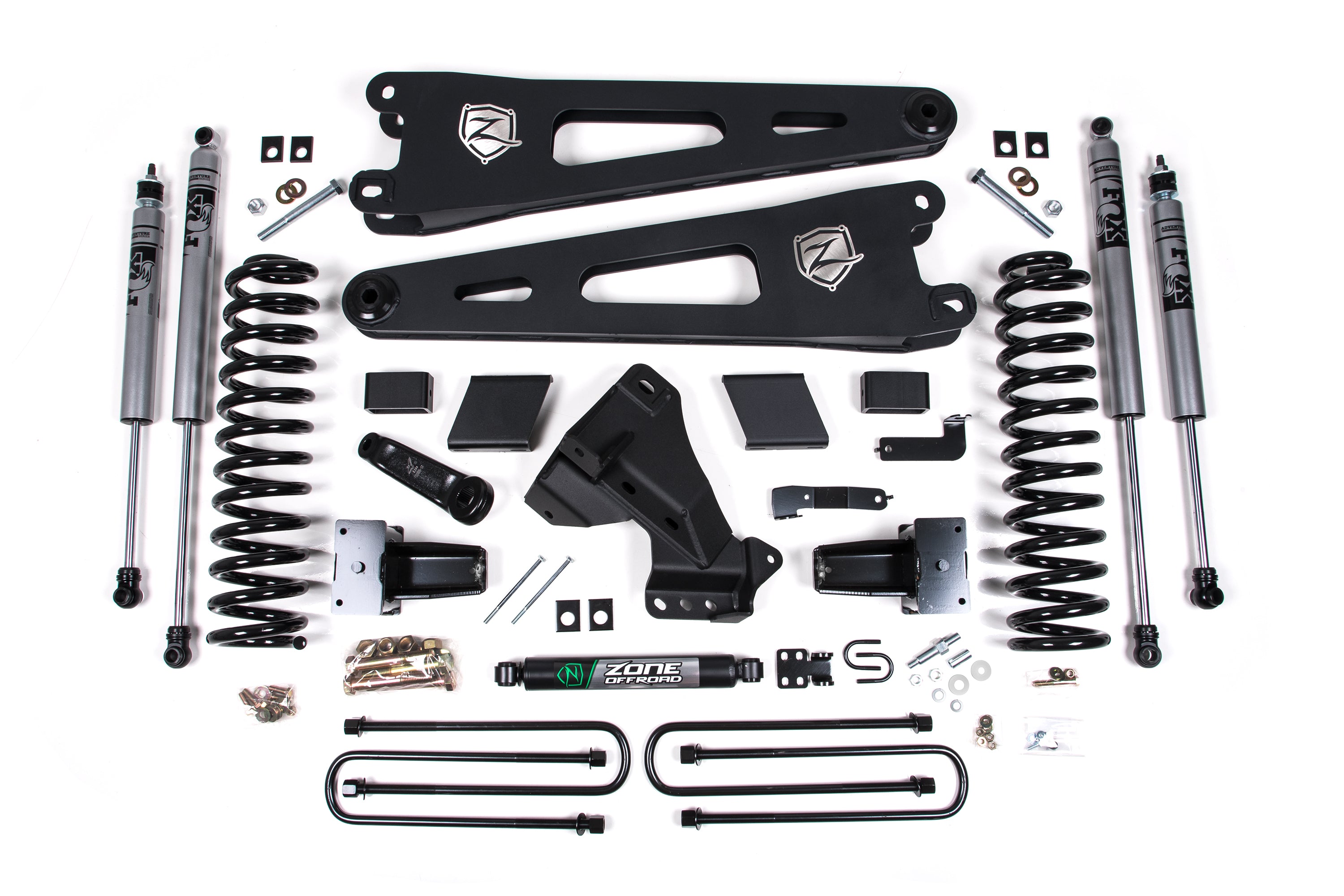

Kit Component List

Select Vehicle

Enter Year, Make, Model to verify Fitment

×
$1,658.45
Subtotal: $1,658.45

I have read the Important Notes and Verified my Vehicle Fitment

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zon_F64F_F65F_F69F_F70F.jpg

7 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (20-22) 4WD | Diesel

$1,658.45
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zon_F64N_F65N_F69N_F70N.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zone_shock_card_fox_adv_series.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zone_shock_card_nitro_series.jpg

7 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (20-22) 4WD | Diesel

$1,658.45
Shock Option: FOX 2.0 Adventure Series
OVERVIEW
Zone Offroad now offers 6" radius arm lift kits for the 2020-2022 Ford F250/F350 Super Duty 4WD diesel trucks. These new 7" lift kits are designed to be complete with everything needed to properly lift your new Super Duty to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

Features & Benefits

  • Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance.
  • Forged pitman arm to correct steering angles.
  • Heavy duty fabricated track bar relocation bracket to re-center front axle.
  • Full length Diesel/ Gas specific coil springs for a smooth ride

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 20 x 10 and 4.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.5 in. Backspace

Shock Option

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
IMPORTANT NOTES
  1. DIESEL MODELS ONLY
  2. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  3. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
  4. Fits SRW models only


Wheel and Tire:

  • 37x12.50 tires may require minor trimming.
  • Factory wheels fit when paired with factory / original equipment tire size.

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

4-6 hrs

Difficulty Level :

Moderate

Tools Needed :

Wrenches: Standard
SPECIFICATION
  • Front Lift Method : Coil Spring & Radius Arm
  • Front Lift Height : 7"
  • Rear Lift Method : Block
  • Rear Lift Height : 5"
  • Shocks Included : Yes
  • Lift Height : 6-7.5"
FITMENT
YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2020FordF-250 Super DutyALL4WDDIESELFront and Rear7"
2020FordF-350 Super DutyKing Ranch4WDDIESELFront and Rear7"
2020FordF-350 Super DutyLariat4WDDIESELFront and Rear7"
2020FordF-350 Super DutyLimited4WDDIESELFront and Rear7"
2020FordF-350 Super DutyPlatinum4WDDIESELFront and Rear7"
2020FordF-350 Super DutyXL4WDDIESELFront and Rear7"
2020FordF-350 Super DutyXLT4WDDIESELFront and Rear7"
2021FordF-250 Super DutyALL4WDDIESELFront and Rear7"
2021FordF-350 Super DutyKing Ranch4WDDIESELFront and Rear7"
2021FordF-350 Super DutyLariat4WDDIESELFront and Rear7"
2021FordF-350 Super DutyLimited4WDDIESELFront and Rear7"
2021FordF-350 Super DutyPlatinum4WDDIESELFront and Rear7"
2021FordF-350 Super DutyXL4WDDIESELFront and Rear7"
2021FordF-350 Super DutyXLT4WDDIESELFront and Rear7"
2022FordF-250 Super DutyALL4WDDIESELFront and Rear7"
2022FordF-350 Super DutyKing Ranch4WDDIESELFront and Rear7"
2022FordF-350 Super DutyLariat4WDDIESELFront and Rear7"
2022FordF-350 Super DutyLimited4WDDIESELFront and Rear7"
2022FordF-350 Super DutyPlatinum4WDDIESELFront and Rear7"
2022FordF-350 Super DutyXL4WDDIESELFront and Rear7"
2022FordF-350 Super DutyXLT4WDDIESELFront and Rear7"
