6 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (08-10) 4WD | Gas

Zone Offroad
SKU: ZONF36F

×
$1,708.45
Subtotal: $1,708.45

I have read the Important Notes and Verified my Vehicle Fitment

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/zon_F34F_F35F_F36F_F37F.jpg

6 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (08-10) 4WD | Gas

$1,708.45
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/zon_F34N_F35N_F36N_F37N.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/zone_shock_card_fox_adv_series.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/zone_shock_card_nitro_series.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/zon_F34F_F35F_F36F_F37F.jpg

6 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (08-10) 4WD | Gas

$1,708.45
Rear Lift Option: Block Kit Without Factory Overload
Shock Option: FOX Adventure Series
OVERVIEW
When you go big you can go anywhere. This 6" Radius Arm Lift Kit puts your truck into a class of its own, letting you clear huge 37" tires. Get the look and performance you want out of your 4WD 2008 - 2010 Ford F-250 / F-350.

Features & Benefits

  • Brake line relocation brackets allow re-use of factory brake lines.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
  • Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits.
  • High-strength, 1/4" steel radius arms correct caster, improve tire clearance, and maximize ground clearance.
  • Rear lift block and longer U-bolts for easy installation and level stance.
  • Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
  • Sway bar relocation brackets maintain operating angle for reduced body roll.

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Rear Lift Option

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

  • Factory Overload – 3 Leaf
  • NO Overload – 2 Leaf

Shock Option

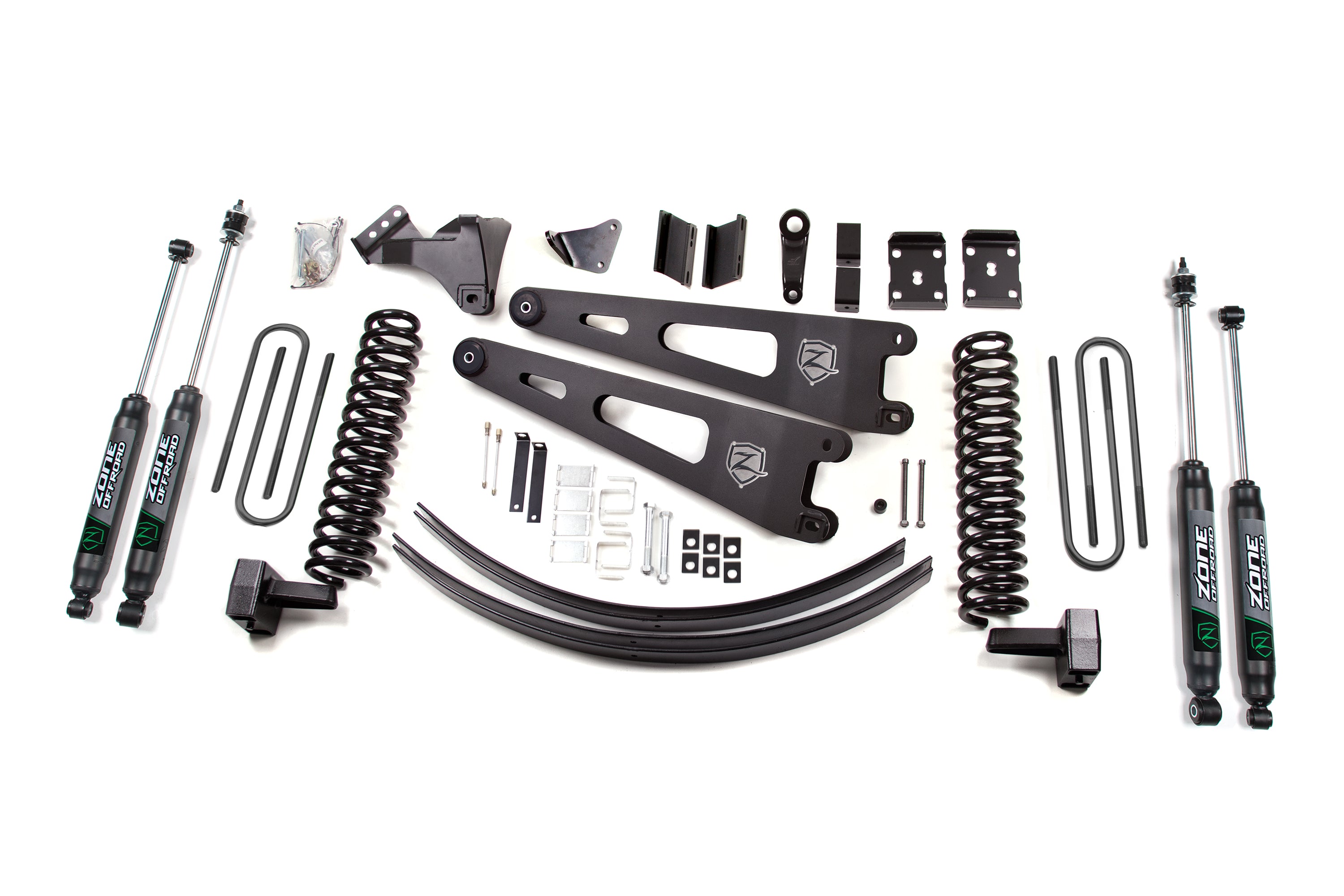

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

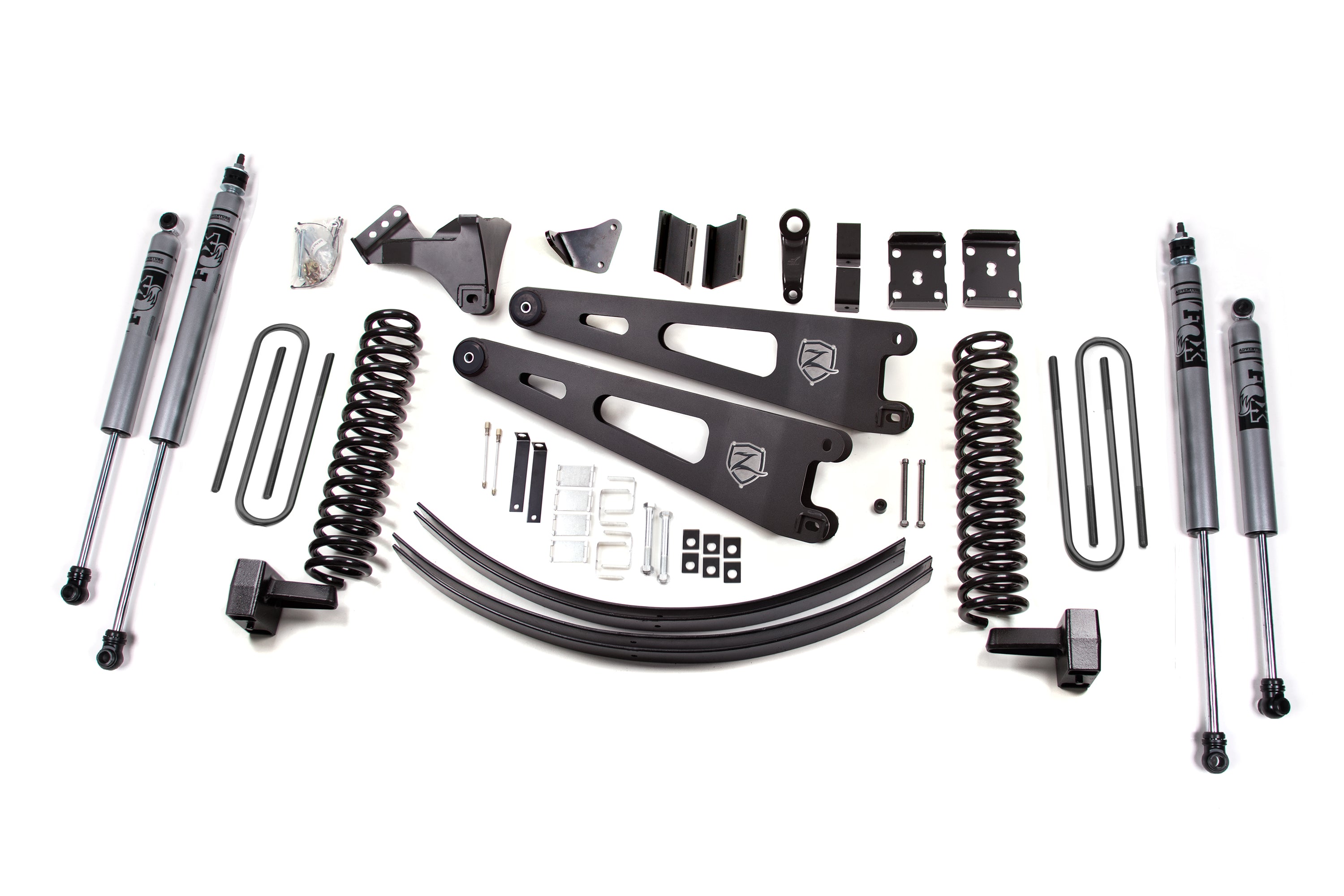

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
IMPORTANT NOTES
  1. Although extremely rare, front and/or rear driveline vibration may occur and require driveline modification.
  2. Factory wheels fit when paired with factory / original equipment tire size.
  3. This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
  4. This lift will require replacing your truck's factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
  5. Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
  6. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
