6 Inch Lift Kit | Ford F250/F350 Super Duty (17-19) 4WD | Diesel
SKU:
ZONF110F
×
- $1,584.50
- Unit price
- per

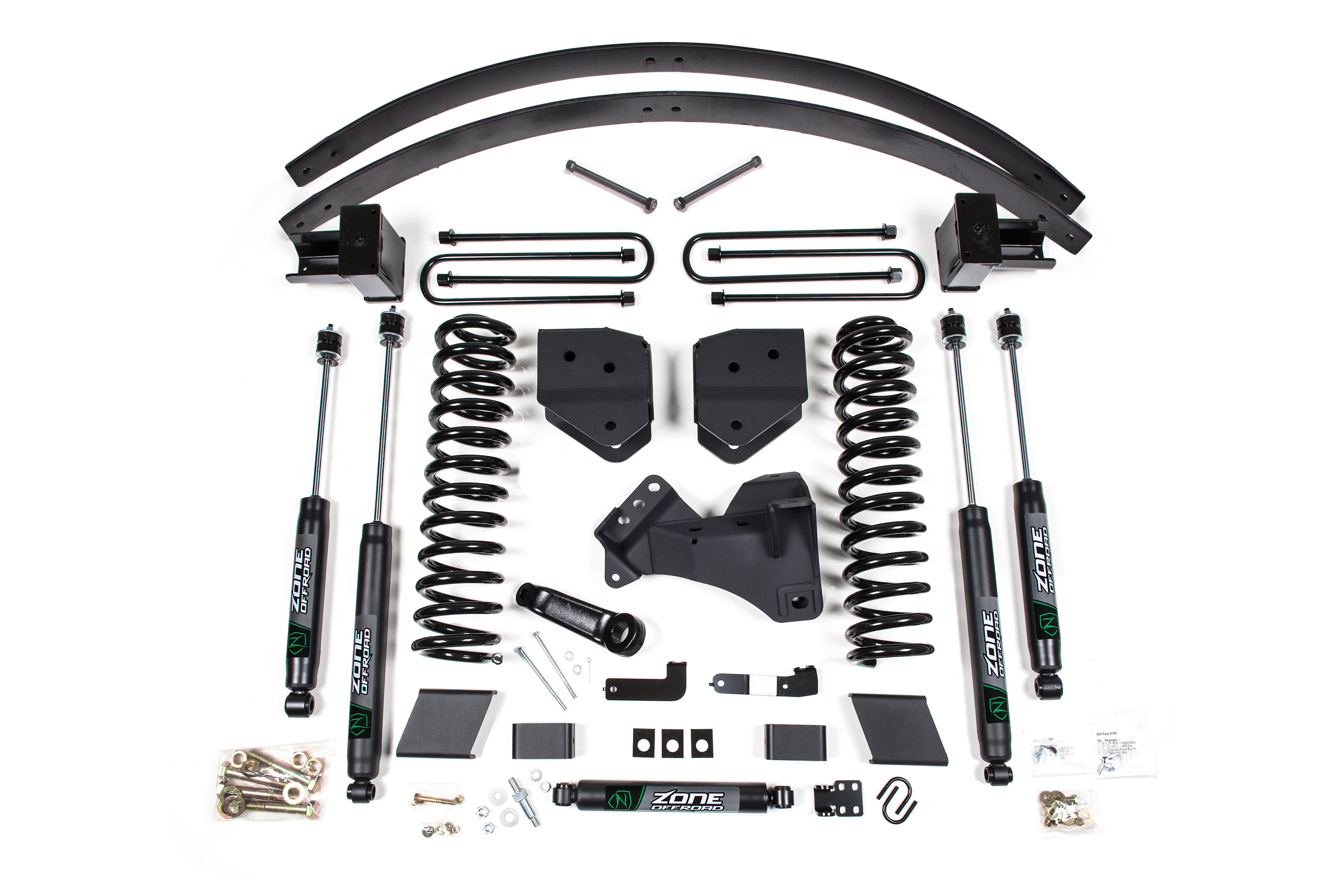

Take your Super Duty to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed to reliably lift your truck and the capability to run up to 37" tires, including coil springs, radius arm drop brackets, steering correction and rear lift blocks or optional add-a-leafs to get the stance and performance you want. Upgrade your stock shocks with Nitro Series Gas Shocks, or Fox 2.0 Adventure Series for even greater performance and control. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty. Get the look, performance, and capability your truck deserves!
Features & Benefits
- High strength front coil springs improve ride quality.
- Radius arm drop brackets to correct caster and maintain suspension geometry.
- Forged pitman arm and track bar relocation bracket to correct steering angles and re-center front axle.
- Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles.
- Replacement 3" rear lift block for a leveled stance, or optional upgrade to rear add-a-leaf for 4" net lift and improved performance
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
Rear Lift Option
Block Kit
- Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
- Blocks made of steel for high strength.
- Designed to provide correct pinion angles.
Block Kit with Add-A-Leaf
- Add-a-leaf helps freshen up old worn-out factory leaf springs.
- Blocks are made from cast iron for max strength.
- Includes new center pins.
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish

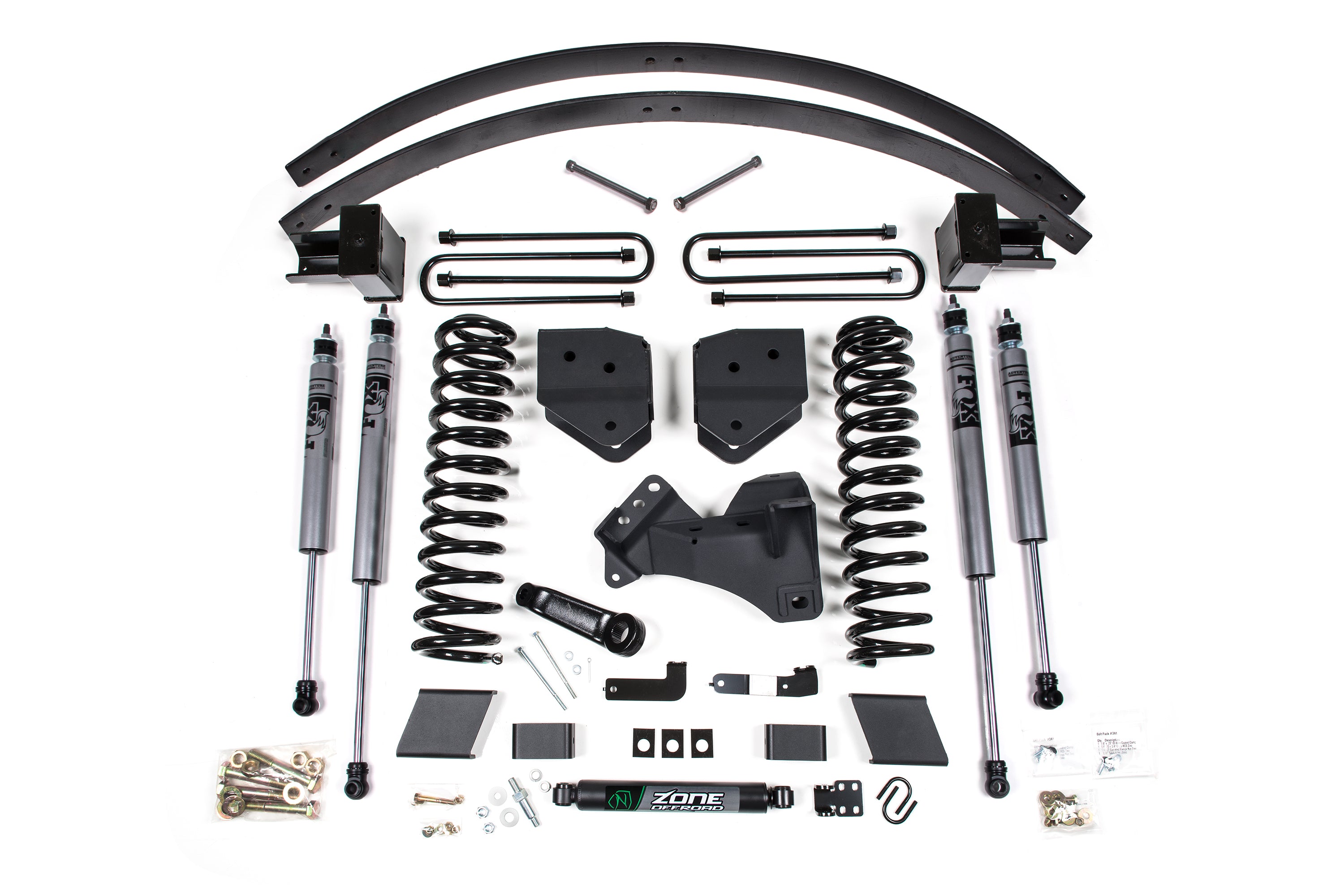

FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- Check your rear springs to determine if your truck is equipped with standard, 2-leaf main, or heavy payload 3-leaf main spring pack with an overload spring.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration
Wheel and Tire:
- 37X12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory / original equipment tire size.
