6 Inch Lift Kit | Ford F150 (2014) 4WD

SKU: ZONF40F

×
$1,477.65
Subtotal: $1,477.65

I have read the Important Notes and Verified my Vehicle Fitment

https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zon_F40F_F81F.jpg

6 Inch Lift Kit | Ford F150 (2014) 4WD

$1,477.65

6 Inch Lift Kit | Ford F150 (2014) 4WD

$1,477.65
Front Shock/Rear Shock Option: Strut Spacer / FOX Adventure Series
Rear Lift Option: 5 Inch Block Kit

Give your 2014 Ford F-150 the height, clearance, and aggressive stance it deserves with the Zone Off Road 6-inch Lift Kit. Designed to improve capability on and off the trail, this system provides the clearance needed to run up to 37-inch tires while maintaining solid on-road handling. The lift is built around precision-engineered steering knuckles which properly correct suspension geometry at the taller ride height. To complete the system, the kit includes heavy-duty crossmembers, a differential drop, sway bar drop brackets, skid plate, rear lift blocks, and new U-bolts for a complete, properly engineered suspension upgrade which is proudly Made in the USA.

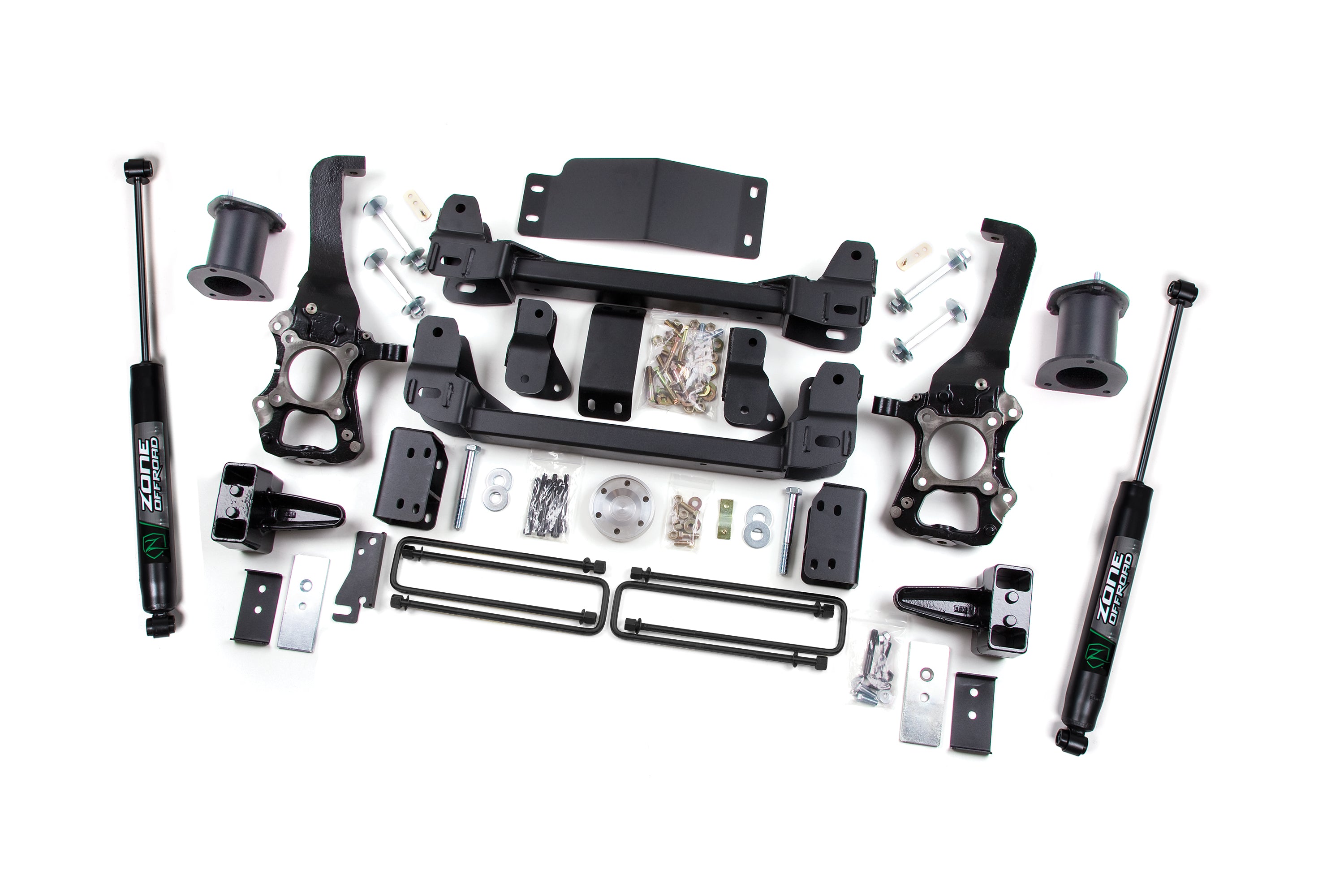

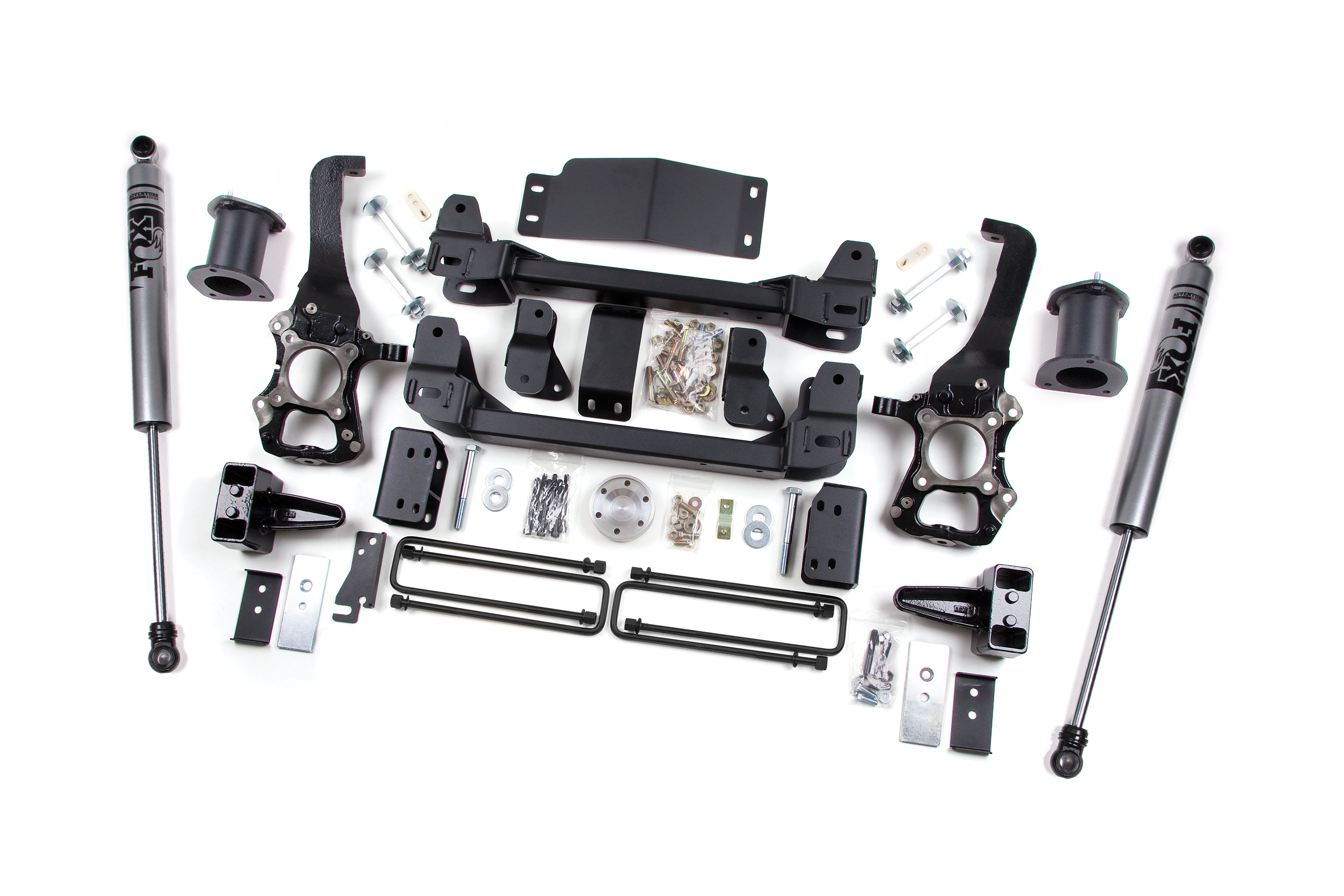

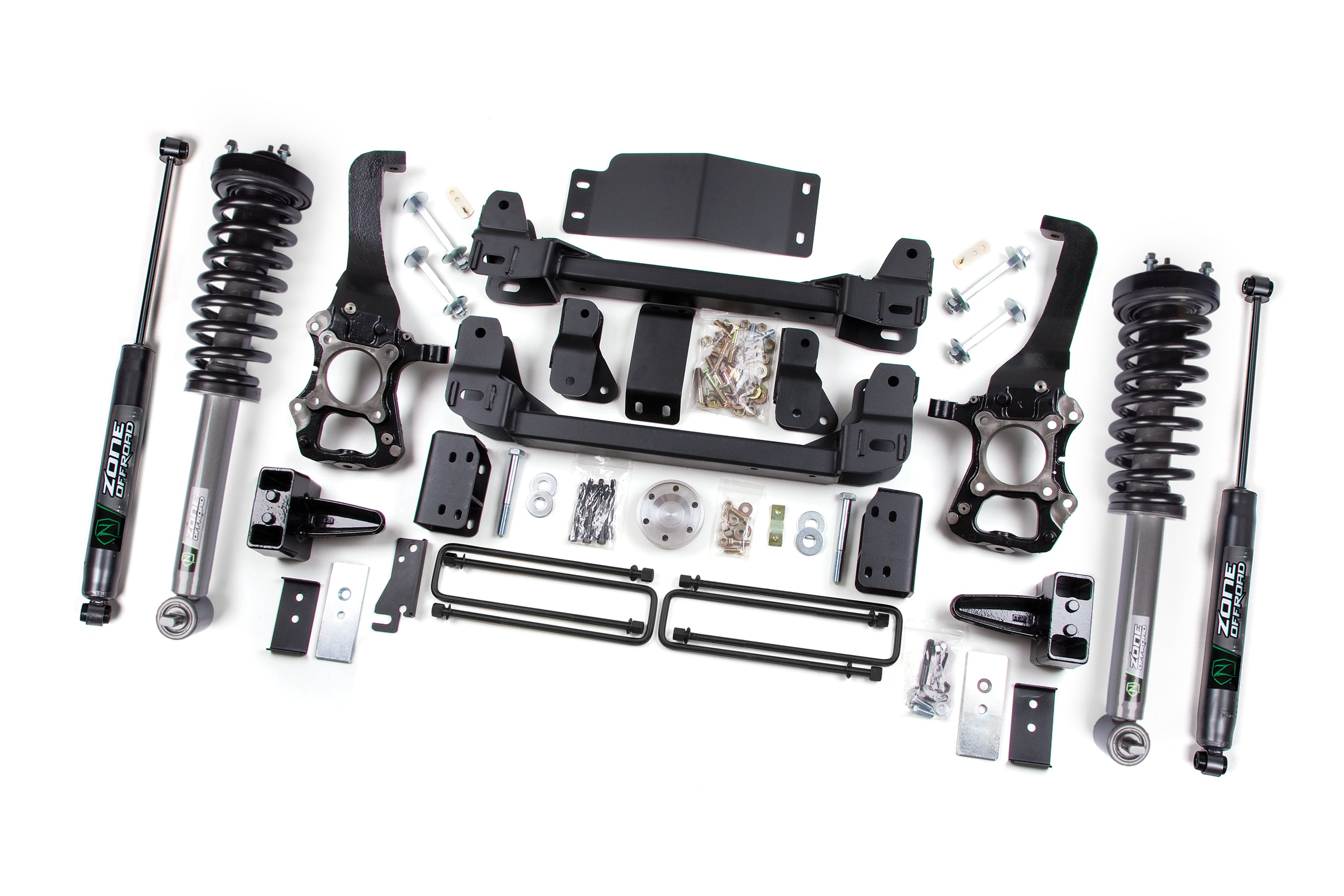

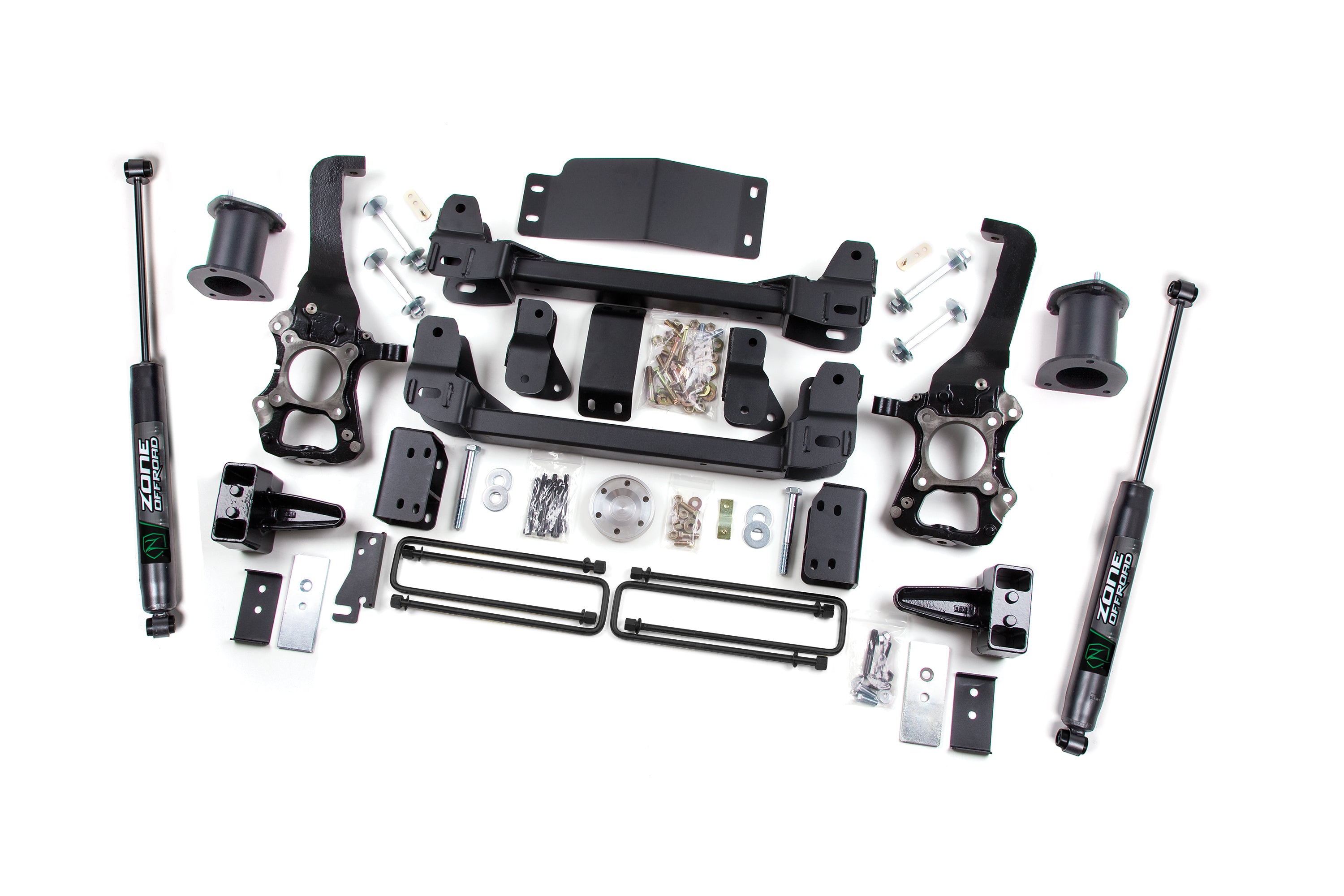

Up front, you can choose the setup that best fits your build. One option uses OE strut spacers, allowing you to retain the factory front struts while achieving the full lift height. This configuration can be paired with either Zone Nitro rear shocks or upgraded FOX 2.0 Adventure Series rear shocks for improved ride control. For a more complete front suspension upgrade, the kit is also available with Zone Nitro loaded struts, which arrive fully assembled and ready to bolt in, paired with matching Zone Nitro rear shocks for balanced performance and easy installation.

In the rear, Zone gives you the ability to fine-tune the stance of your truck. A 4-inch rear block levels the truck for a clean, aggressive look, while a 5-inch rear block retains some of the factory rake for those who prefer a slightly higher rear stance for hauling or towing.

Built with durability in mind and engineered for an easy installation, the Zone Off Road 6-inch Lift Kit is a straightforward way to transform the look and capability of your F-150 without sacrificing everyday drivability.

Features & Benefits

  • Heavy-duty differential skid slate improves offroad protection.
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
  • High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
  • Lift system does not change the front track width of the vehicle.

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
  • 37 x 12.5 with 22 x 9 and 5.5 in. Backspace

Rear Lift Option

5 Inch Block Kit

  • Level to tail high appearance

4 Inch Block Kit

  • Tail low to level stance

Rear Shock Option

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
  1. This kit is offered with either 4" or 5" rear lift block kit and in either case it will replace the factory rear blocks. The 5" block will net a level to slightly tail high stance, the 4" block will net a level to slightly tail low stance.
  2. Choose rear lift height based on your ride height preference.
  3. Power steps? If your vehicle is equipped with factory power steps, it will require E-Brake Relocation Bracket. Add in configuration / checkout.
  4. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.

Wheel and Tire:

  • May require bumper or fender trimming depending on wheel and tire choice. See installation instructions for more information.
