6 Inch Lift Kit | Ford F150 (09-13) 4WD
SKU:
ZONF10F
×
- $1,733.60
- Unit price
- per

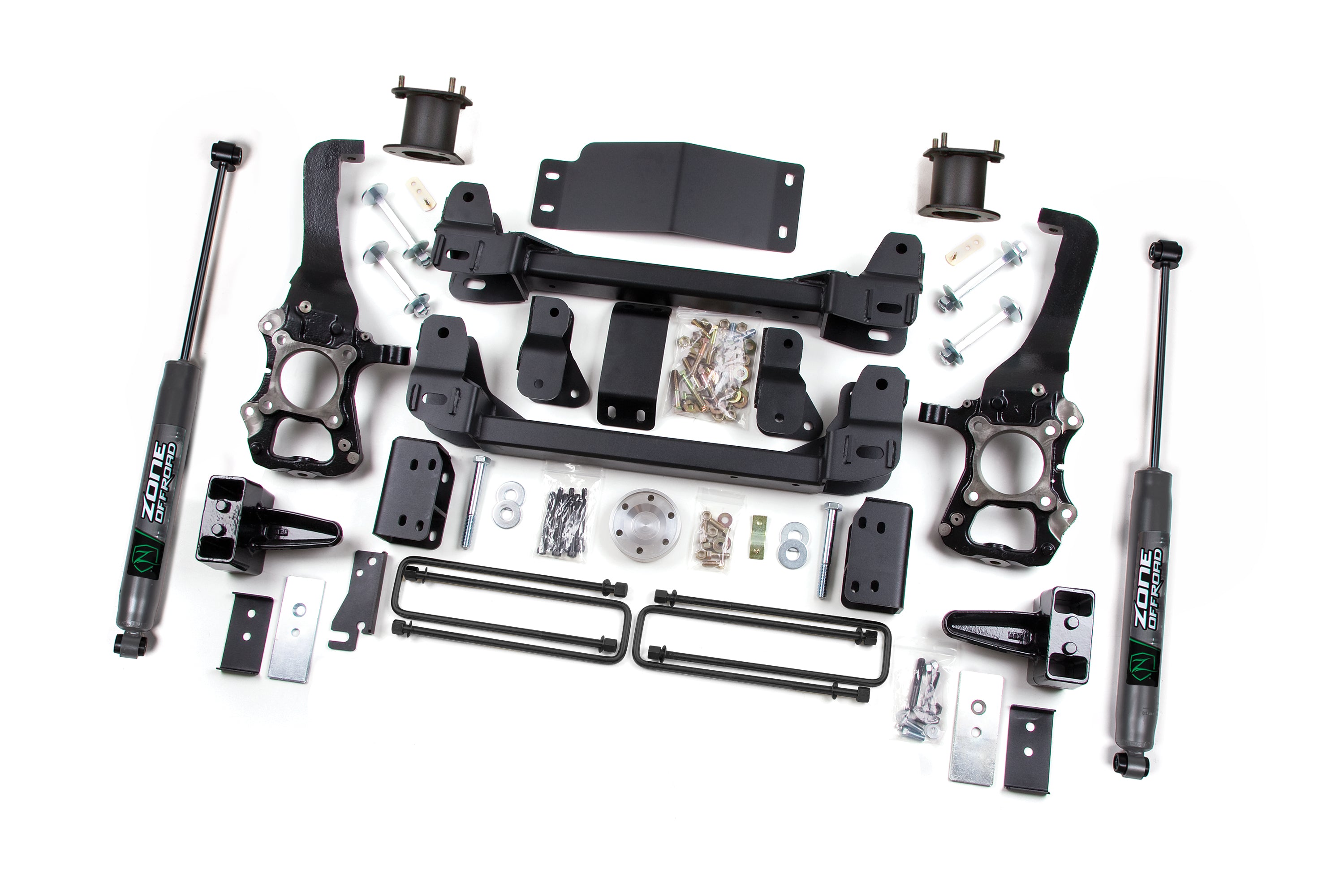

Take your F150 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear a block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
Features & Benefits
- Heavy-duty differential skid slate improves off-road protection.
- High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
- High-pressure, extended length, replacement front struts improve performance on and offroad.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Lift system does not change the front track width of the vehicle.
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
Rear Lift Option
Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.
5 Inch Block Kit
- Level to tail high appearance
4 Inch Block Kit
- Tail low to level stance
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish

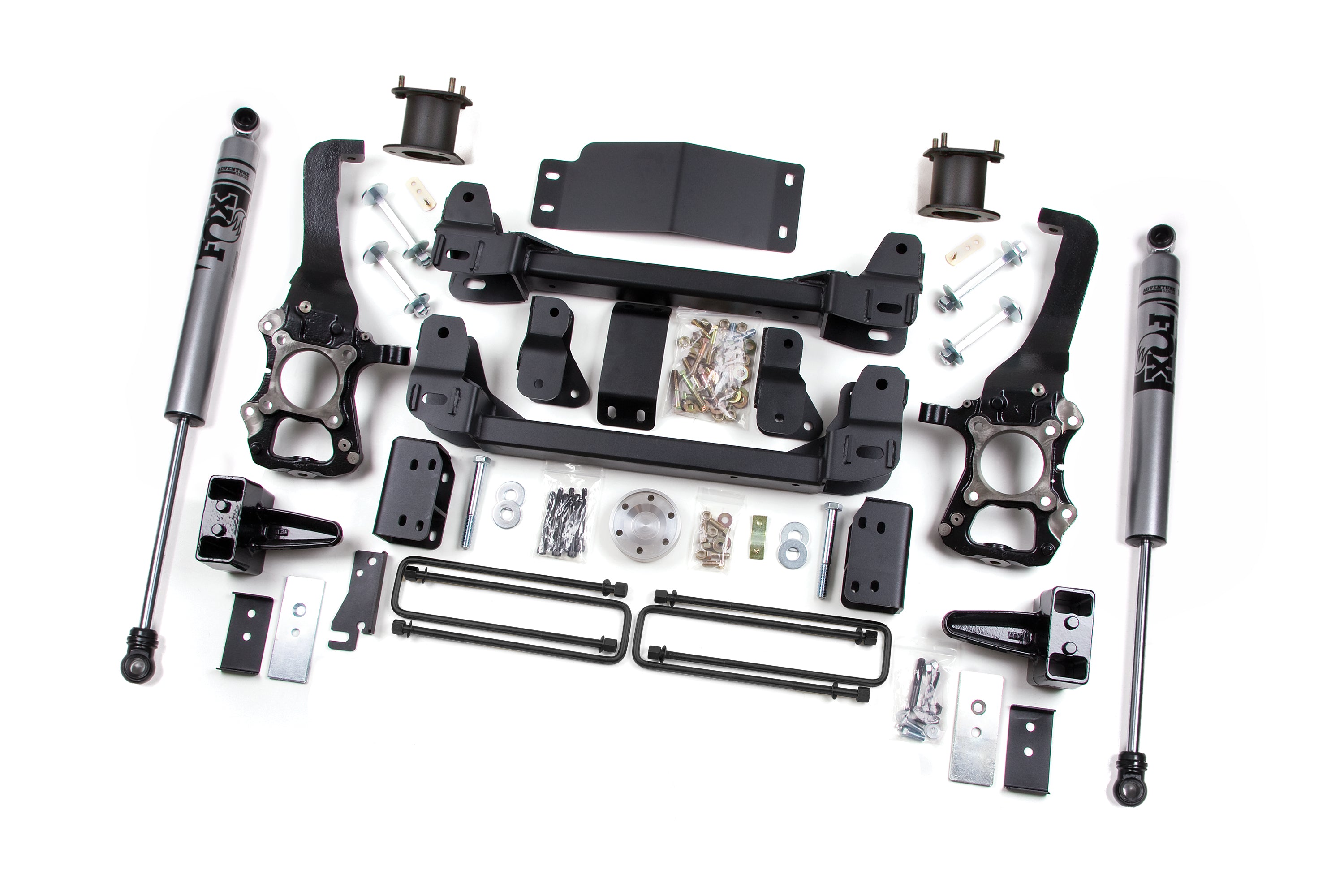

FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- Although rare, some models with 1-piece rear driveshaft may require rear driveshaft spacer kit to ensure sufficient spline engagement.
- Will not fit Raptor models.
- This kit is offered with either 4" or 5" rear lift block kit and in either case it will replace the factory rear blocks. The 5" block will net a level to slightly tail high stance, the 4" block will net a level to slightly tail low stance. Choose rear lift height based on your ride height preference.
- Power steps? If your vehicle is equipped with factory power steps, it will require E-Brake Relocation Bracket. Add in configuration / checkout.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
