6.5 Inch Lift Kit | Chevy Silverado & GMC Sierra 1500 (07-13) 2WD

SKU: ZONC89F

×
$1,351.24
Subtotal: $1,351.24

I have read the Important Notes and Verified my Vehicle Fitment

https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zon_C89F_01.jpg

6.5 Inch Lift Kit | Chevy Silverado & GMC Sierra 1500 (07-13) 2WD

$1,351.24

6.5 Inch Lift Kit | Chevy Silverado & GMC Sierra 1500 (07-13) 2WD

$1,351.24
Rear Shock Option: FOX Adventure Series

Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a ZONE Off Road 6.5-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires

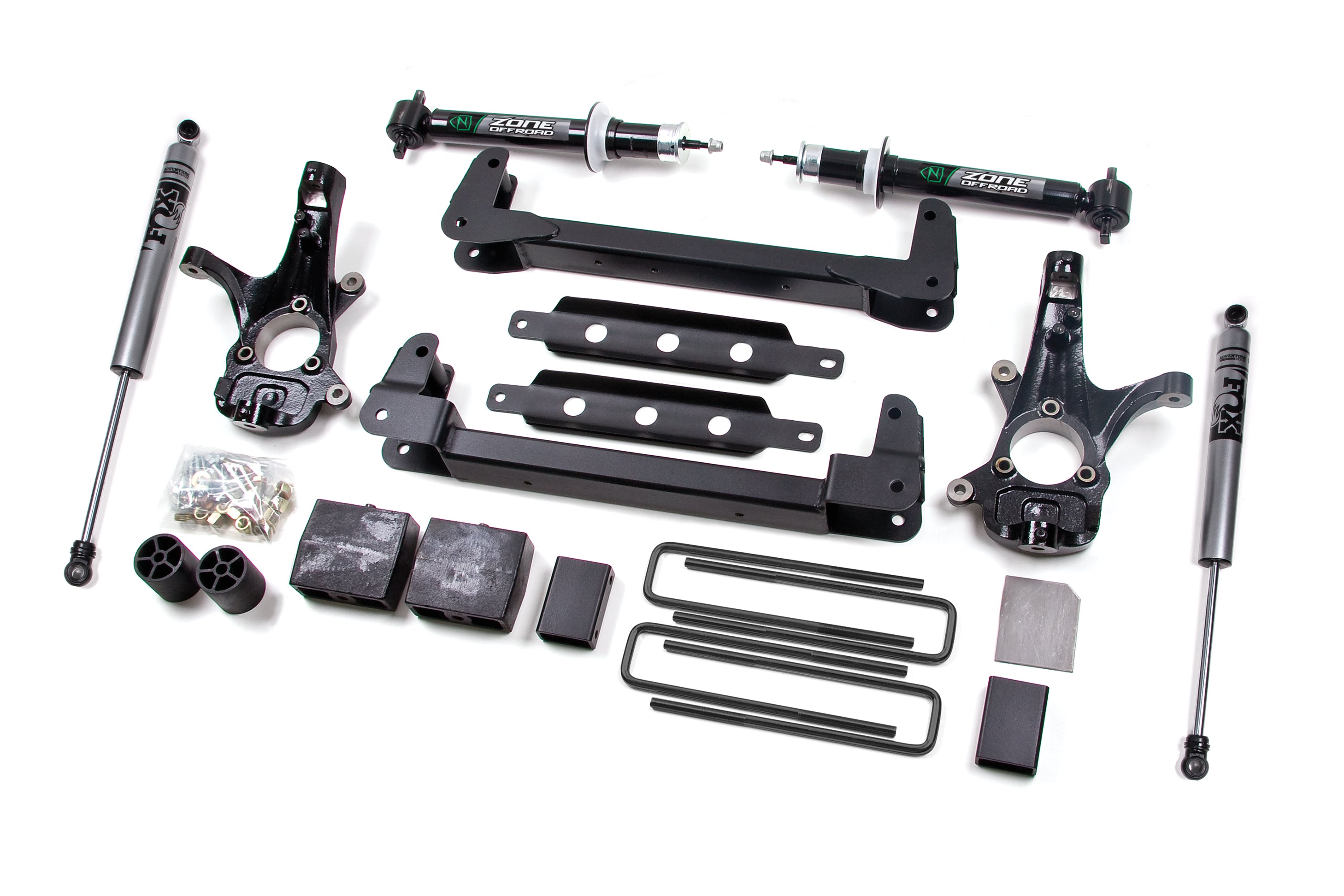

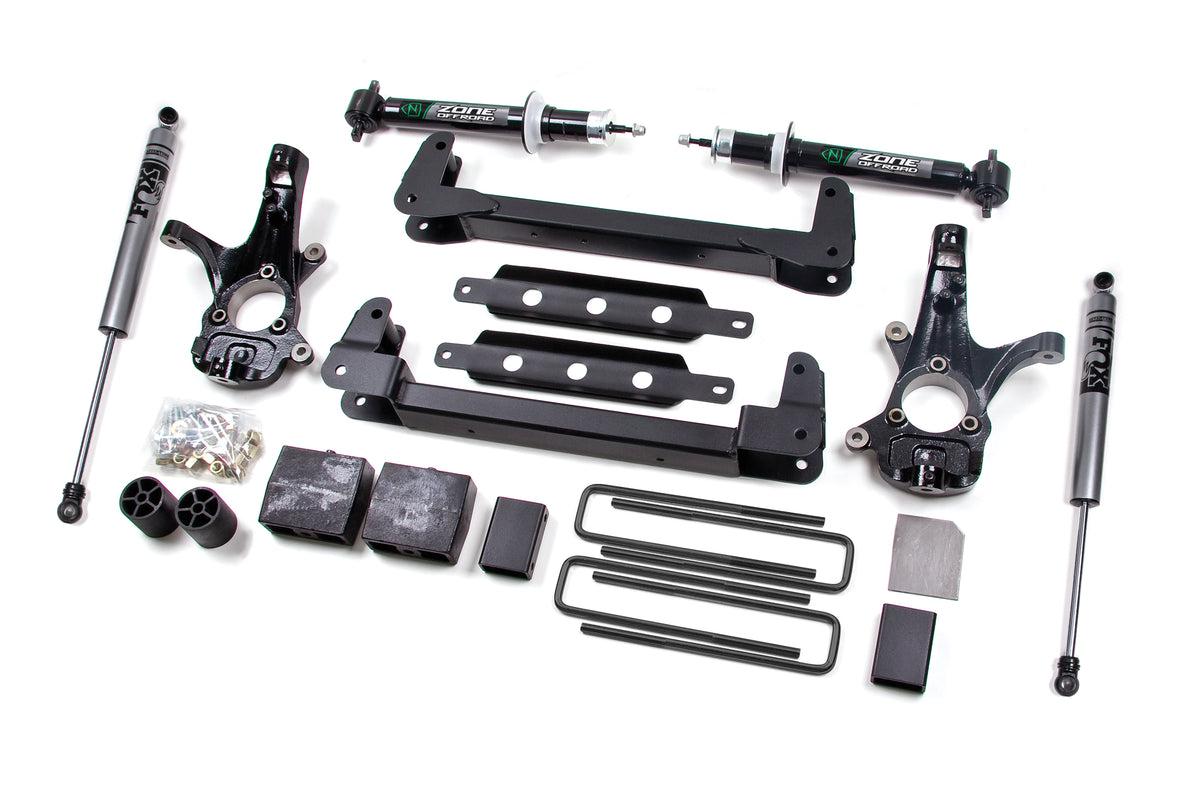

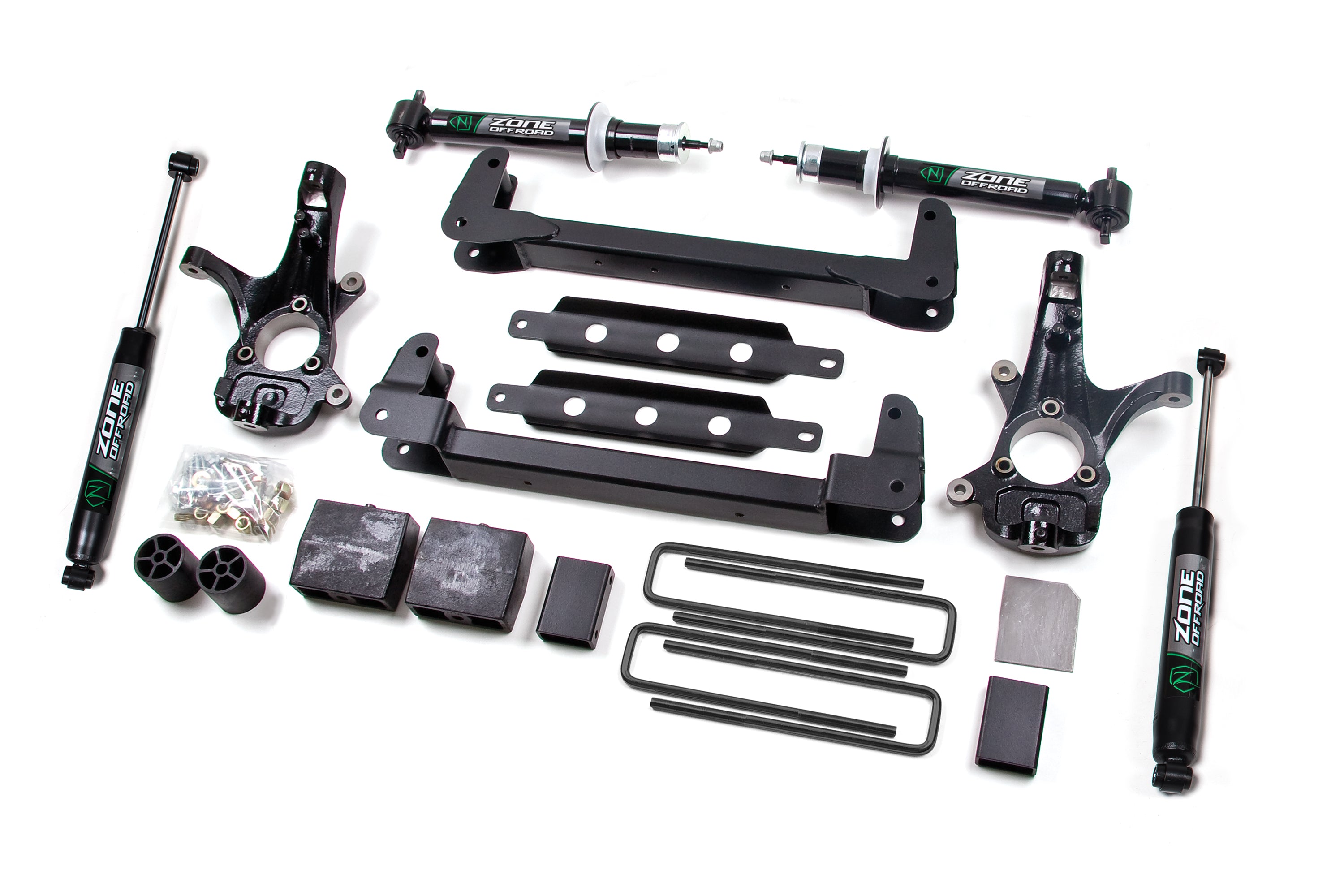

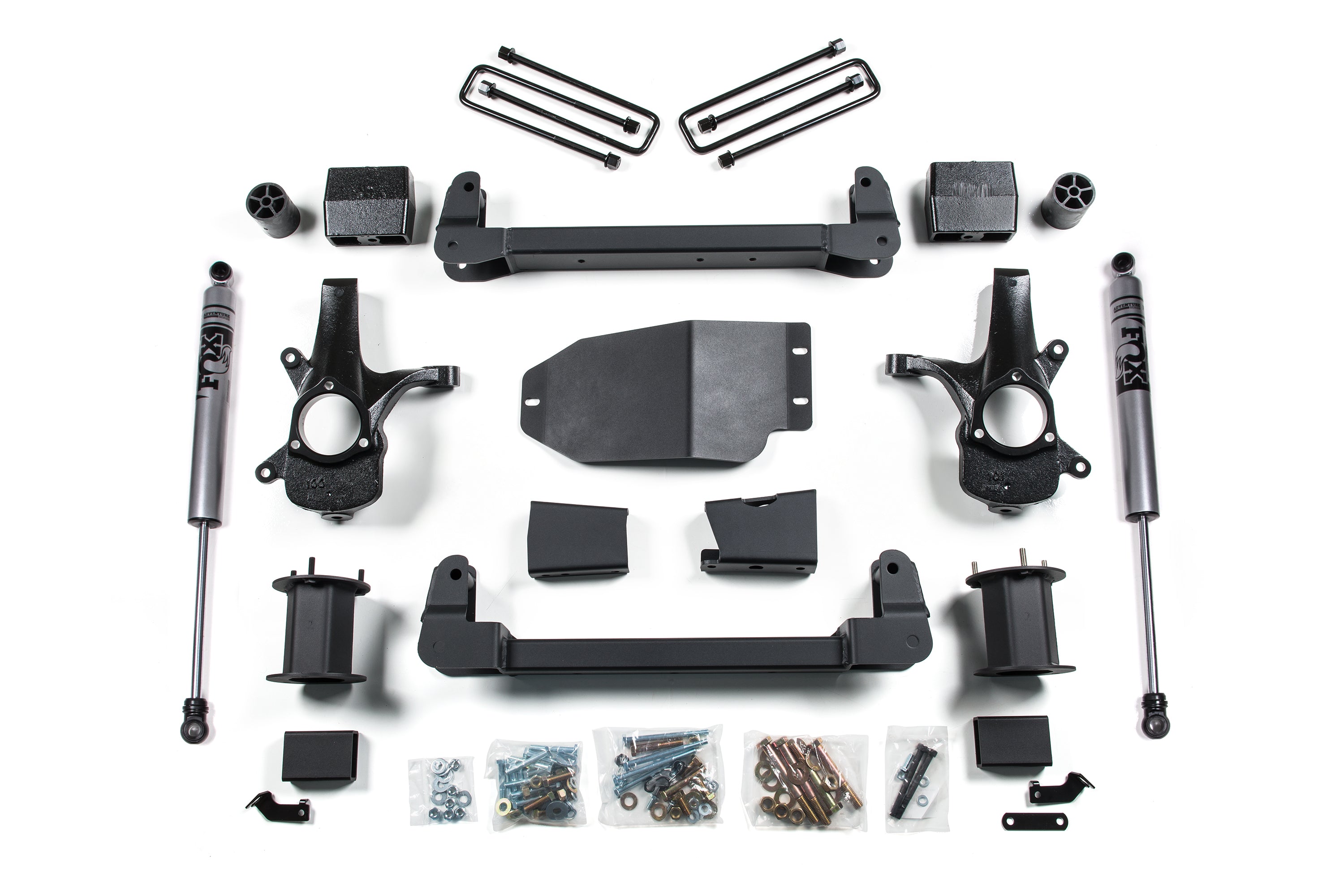

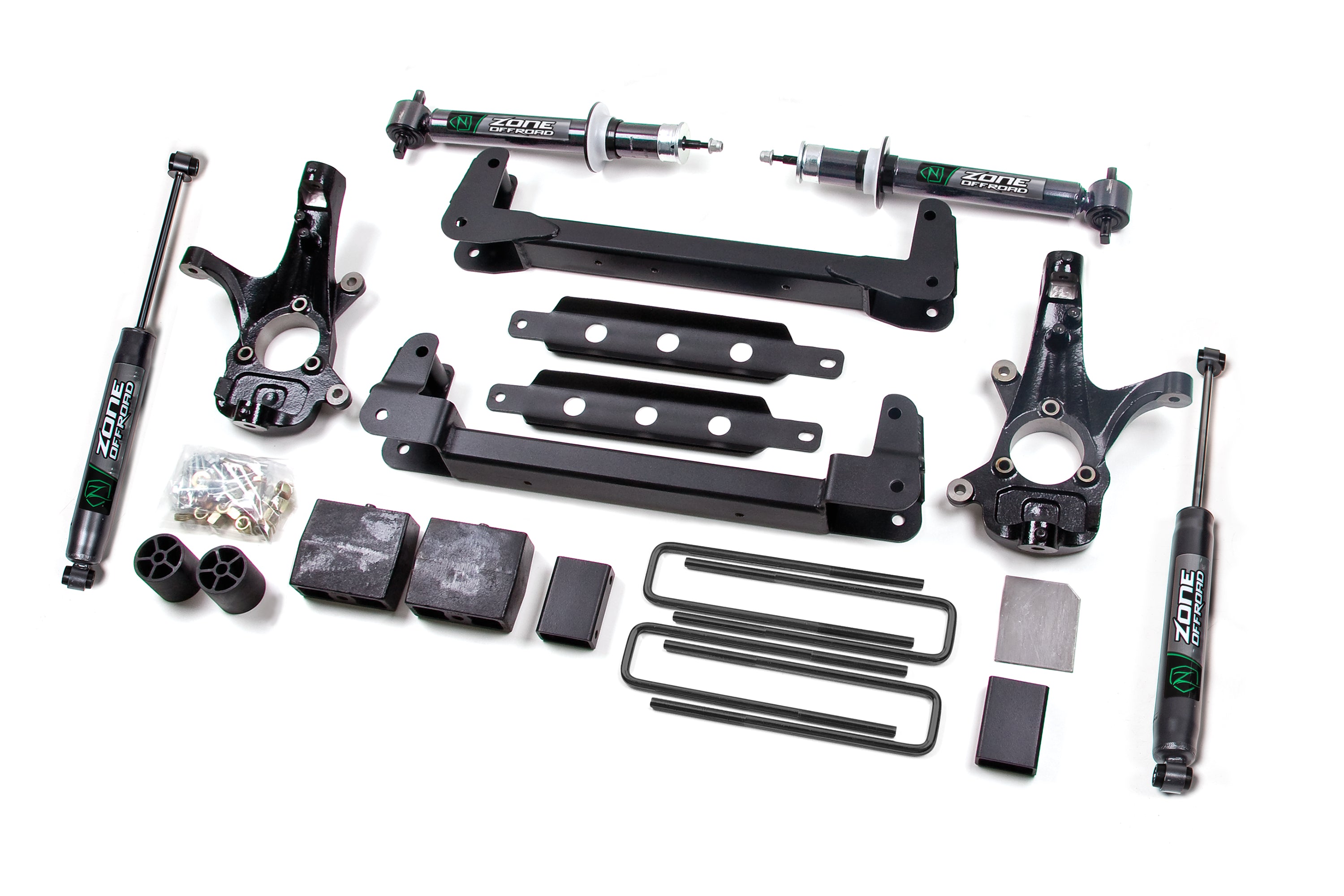

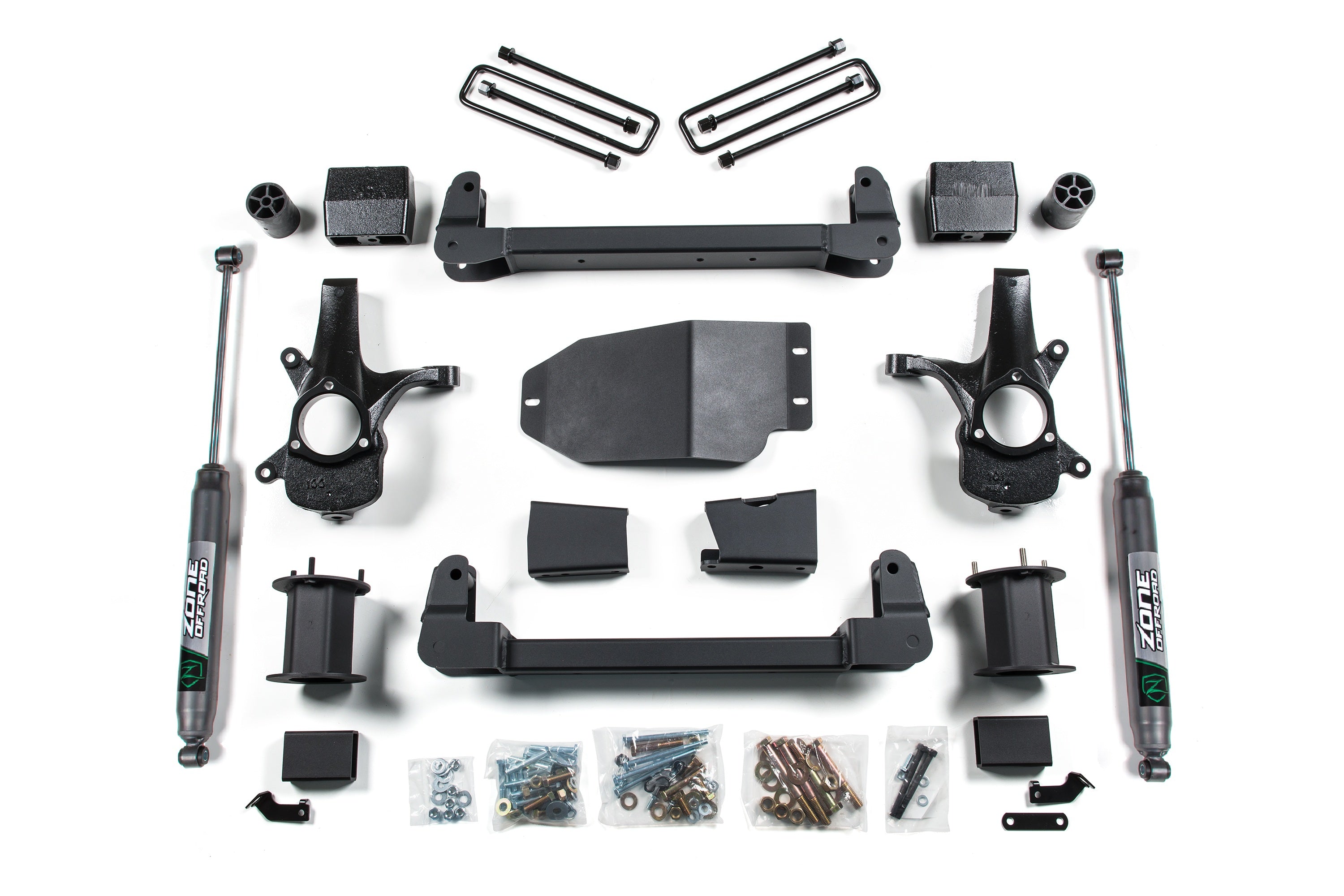

This kit takes advantage of Zone's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear Zone Off Road offers a replacement lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned Zone Nitro or FOX 2.0 Adventure Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

Zone Off Road corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • FOX Adventure Series IFP gas rear shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Rear Shock Option

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting silver coated finish
  1. This system will not fit 2007 classic models
  2. Requires frame bracket modification 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
  3. Traction bars will not fit regular cab short box models.
  4. Will not fit two-mode hybrid models with electronic power steering.
  5. Stock 20" wheels can be re-installed only with factory tire size.
  6. Factory 17 and 18's cannot be re-installed.
