5 Inch Lift Kit | Ford F250/F350 Super Duty (20-22) 4WD | Diesel
SKU:
ZONF58F
Select Vehicle
Enter Year, Make, Model to verify Fitment
- $1,286.55
- Unit price
- per
Zone Offroad now offers a suspension lifts for the 2020-2022 Ford F250/F350 Super Duty 4WD trucks. These new 5" lift kits are available for gas and diesel applications, as well as offered in standard (radius arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Features & Benefits
- Corrects suspension geometry with high strength radius arm drop brackets.
- Forged pitman arm to correct steering angles.
- Heavy duty fabricated track bar relocation bracket to re-center front axle
- Full length Diesel/ Gas specific coil springs for a smooth ride
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
Shock Option

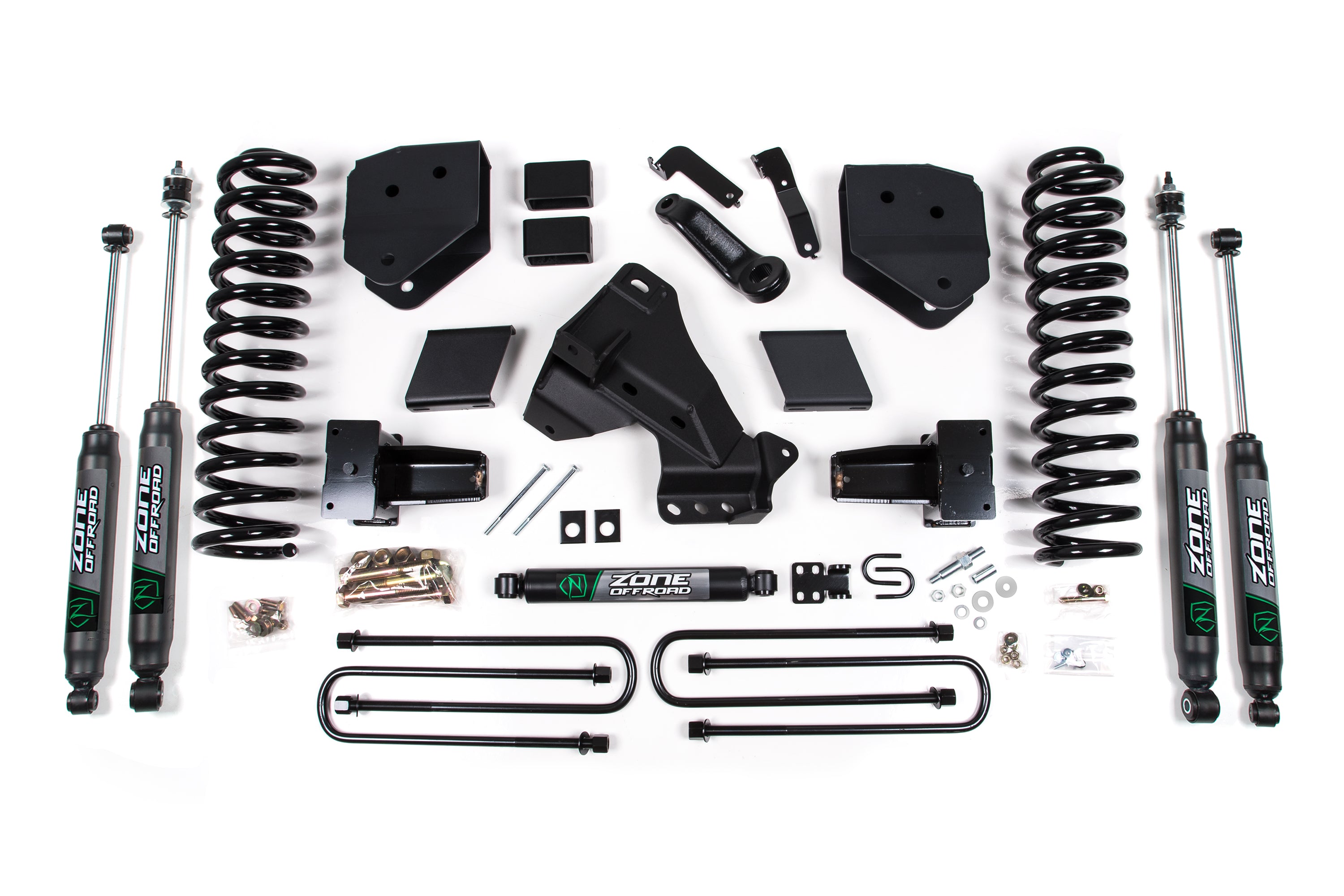

Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish

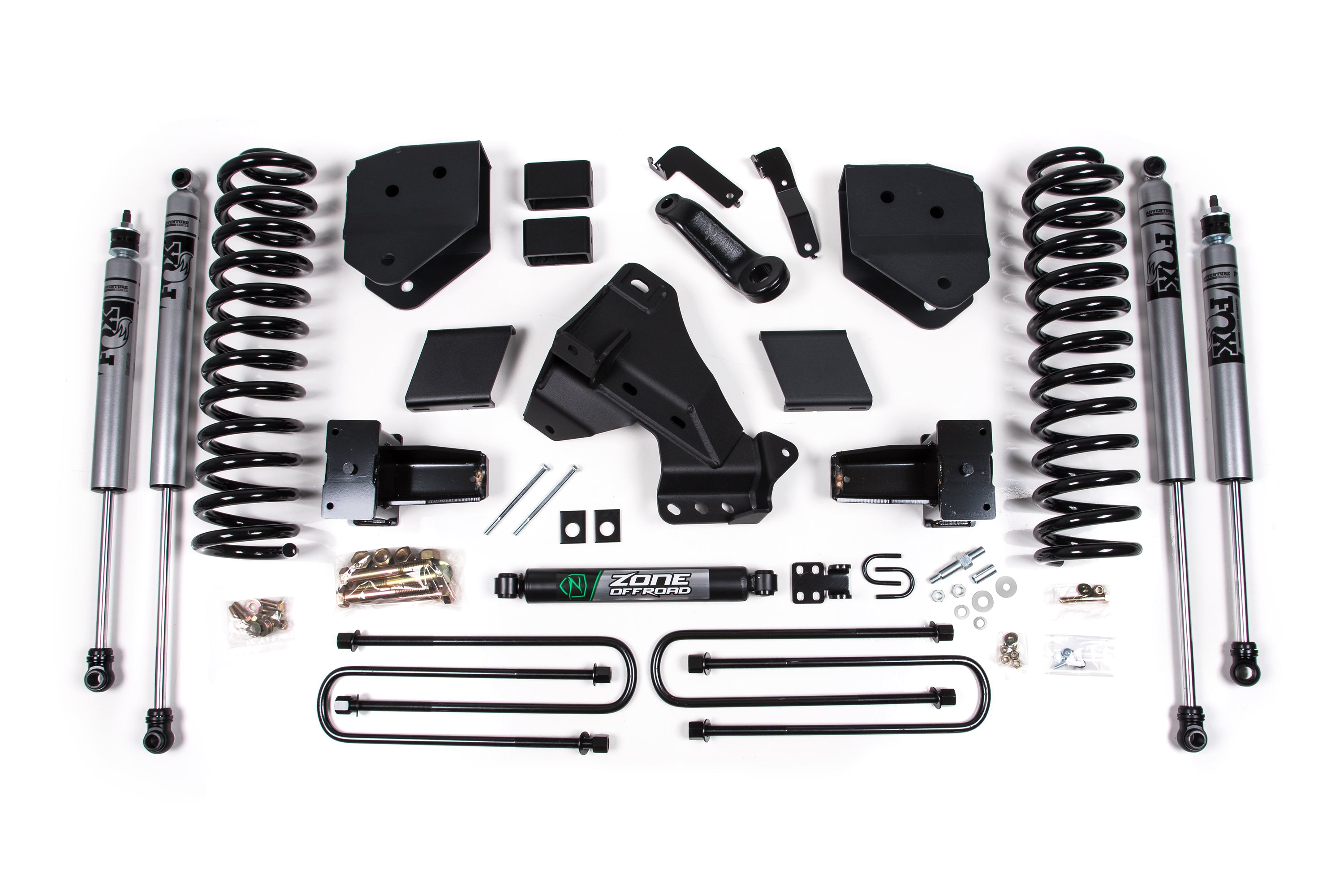

FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
- Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
- Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
- Fits SRW models only
Wheel and Tire:
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory / original equipment tire size.
Installation Guides :
Est. Install Time :
4-6 hrsDifficulty Level :
ModerateTools Needed :
Wrenches: Standard- Front Lift Method : Coil Spring & Drop Bracket
- Front Lift Height : 5"
- Rear Lift Method : Block
- Rear Lift Height : 3"
- Shocks Included : Yes
- Lift Height : 4-5.5"
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2020 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | Front and Rear | 5" |
| 2020 | Ford | F-350 Super Duty | King Ranch | 4WD | DIESEL | Front and Rear | 5" |
| 2020 | Ford | F-350 Super Duty | Lariat | 4WD | DIESEL | Front and Rear | 5" |
| 2020 | Ford | F-350 Super Duty | Limited | 4WD | DIESEL | Front and Rear | 5" |
| 2020 | Ford | F-350 Super Duty | Platinum | 4WD | DIESEL | Front and Rear | 5" |
| 2020 | Ford | F-350 Super Duty | XL | 4WD | DIESEL | Front and Rear | 5" |
| 2020 | Ford | F-350 Super Duty | XLT | 4WD | DIESEL | Front and Rear | 5" |
| 2021 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | Front and Rear | 5" |
| 2021 | Ford | F-350 Super Duty | King Ranch | 4WD | DIESEL | Front and Rear | 5" |
| 2021 | Ford | F-350 Super Duty | Lariat | 4WD | DIESEL | Front and Rear | 5" |
| 2021 | Ford | F-350 Super Duty | Limited | 4WD | DIESEL | Front and Rear | 5" |
| 2021 | Ford | F-350 Super Duty | Platinum | 4WD | DIESEL | Front and Rear | 5" |
| 2021 | Ford | F-350 Super Duty | XL | 4WD | DIESEL | Front and Rear | 5" |
| 2021 | Ford | F-350 Super Duty | XLT | 4WD | DIESEL | Front and Rear | 5" |
| 2022 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | Front and Rear | 5" |
| 2022 | Ford | F-350 Super Duty | King Ranch | 4WD | DIESEL | Front and Rear | 5" |
| 2022 | Ford | F-350 Super Duty | Lariat | 4WD | DIESEL | Front and Rear | 5" |
| 2022 | Ford | F-350 Super Duty | Limited | 4WD | DIESEL | Front and Rear | 5" |
| 2022 | Ford | F-350 Super Duty | Platinum | 4WD | DIESEL | Front and Rear | 5" |
| 2022 | Ford | F-350 Super Duty | XL | 4WD | DIESEL | Front and Rear | 5" |
| 2022 | Ford | F-350 Super Duty | XLT | 4WD | DIESEL | Front and Rear | 5" |
