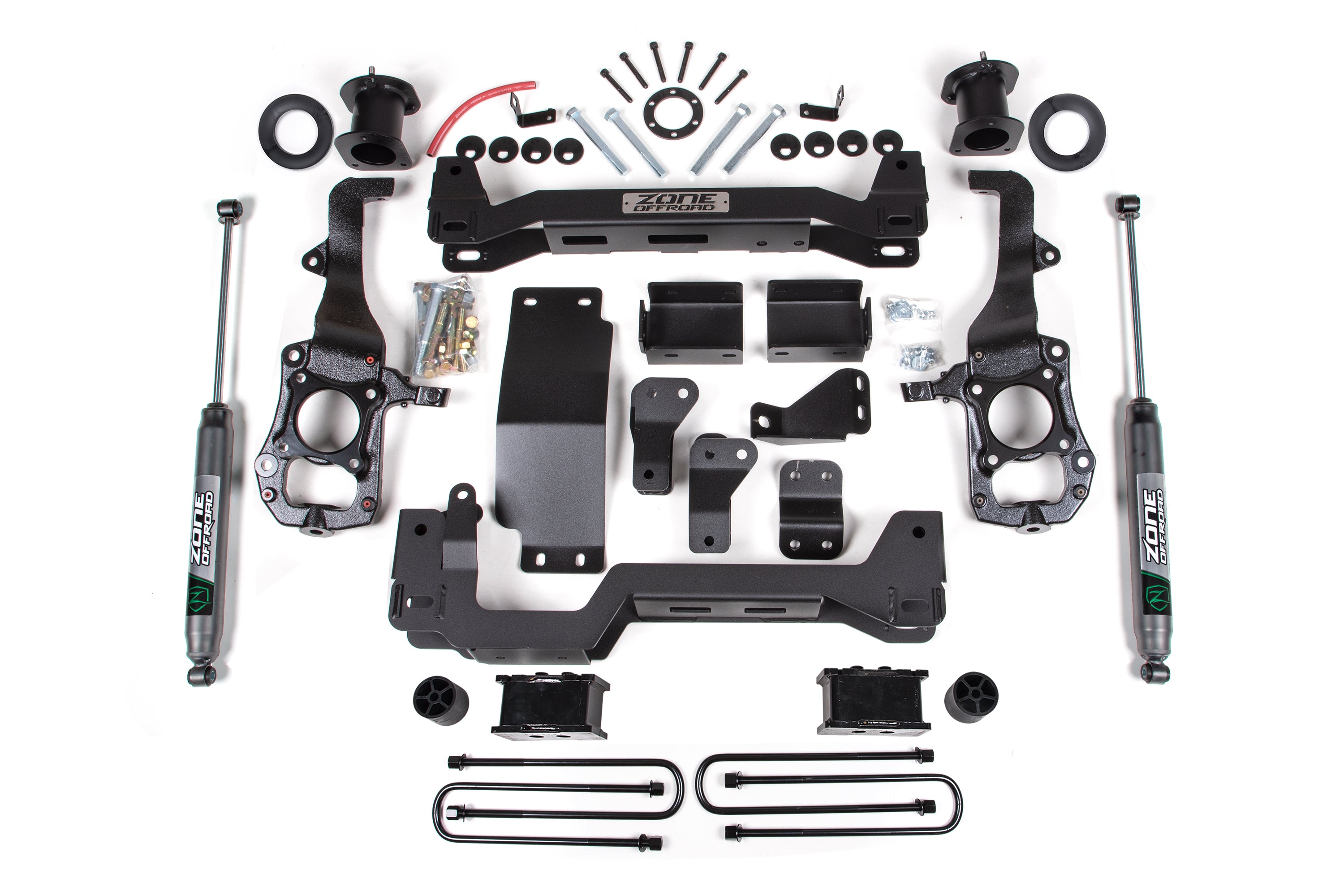

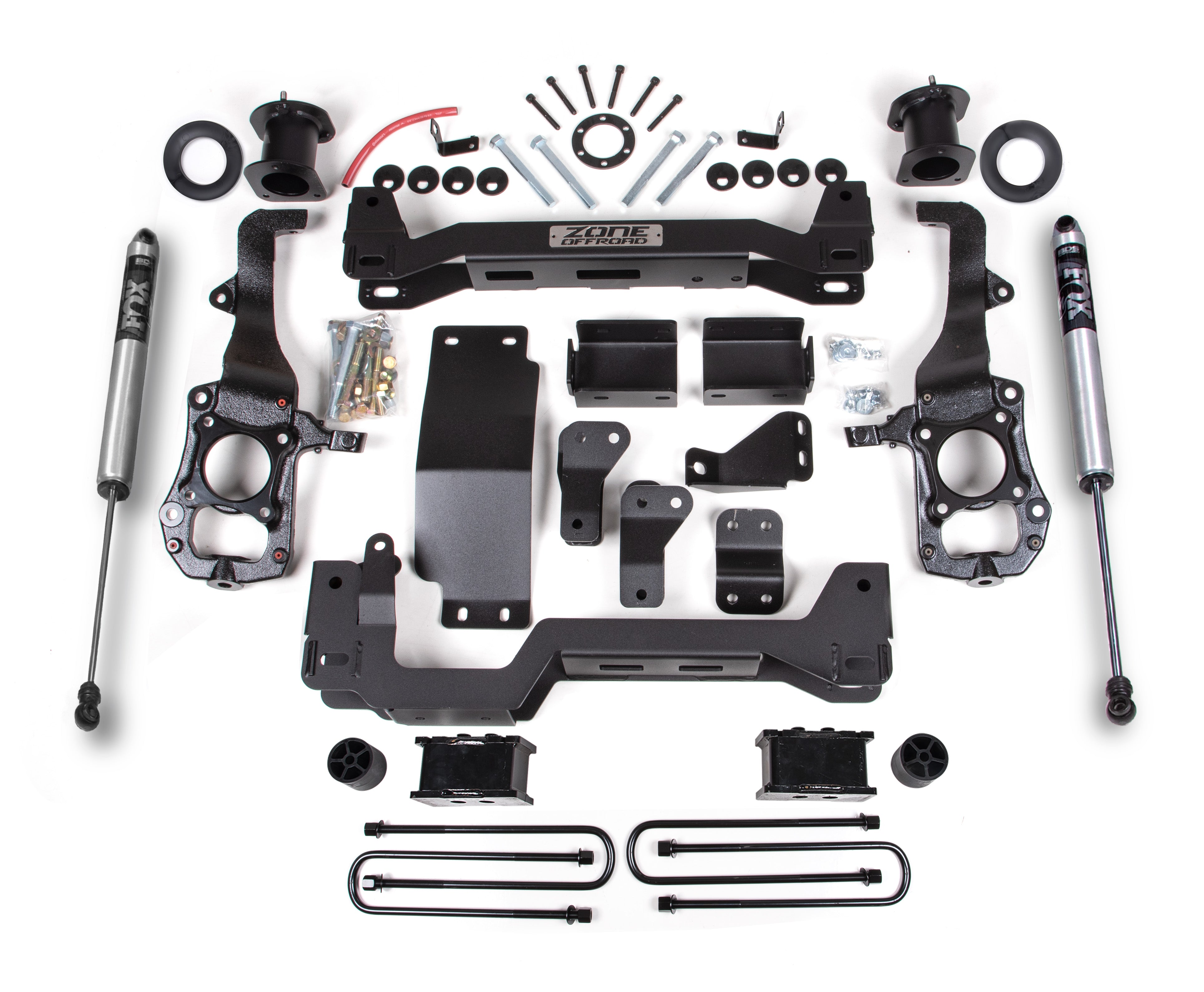

Take your Tremor to new heights with this 5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
Shop By Vehicle
Shop by vehicle
×
What fits my ride?
Shop By Vehicle
Shop By Vehicle
×
What fits my ride?
5 Inch Lift Kit | Ford F-150 Tremor (21-25) 4WD
SKU:
ZONF107F
×
- $1,545.82
- Unit price
- per
Features & Benefits
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Sway bar, brake line and bump stop relocation brackets to correct operating angles
Recommended Tires & Wheels
(Trimming may be required)
- See Notes with and in. Backspace
- Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear drive shaft. (Safety Recall 21S25) Due to the recall procedure, Zone Offroad recommends to have this performed prior to installing the lift.
- 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60R20 tire.
- 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 18 - 20"wheels with 5.5-5.75" of backspacing is highly recommended for tire to frame crash bar clearance. 37" tires will require crash bar modification
- Models with 2-piece rear driveshaft WILL require carrier bearing shim kit D5405 (not included w/ kit).
- Block kits replace factory 1-1/4†block. Stock block will not be reinstalled.
- Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
- Does not fit diesel models.
- Will not fit Tremor models.
- Requires frame bracket modification
- Will fit models with 4 Auto that do not have the 4WD actuator hub assembly.
Tire Fitment
- 35x12.50 on 18x9 or 20x9 and 4.5-5" BS
- *37x12.50 on 20 x 9 and 5.5-5.75" BS
- 35x12.50 w/20 x 9 and 4.5-5.75" BS
