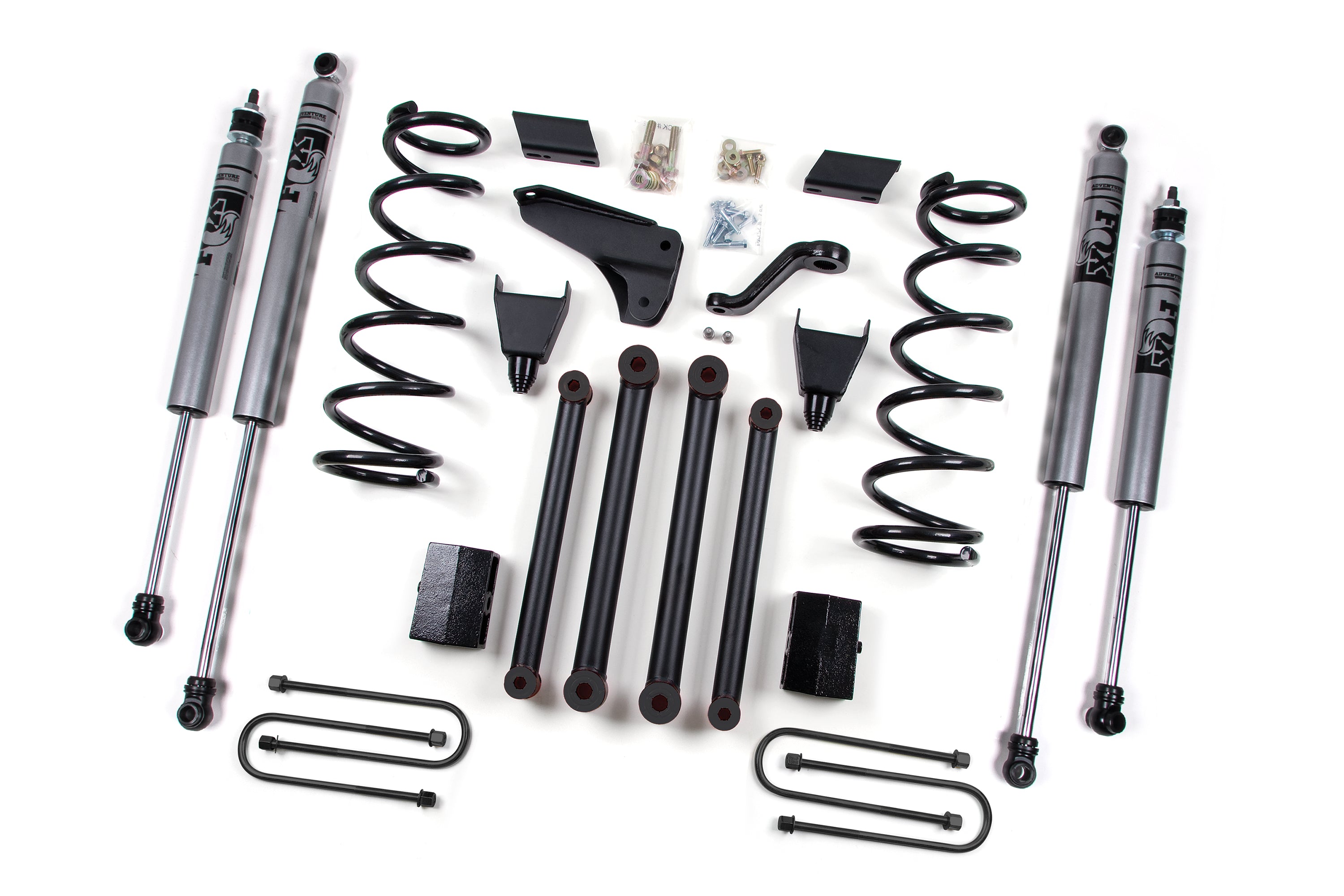

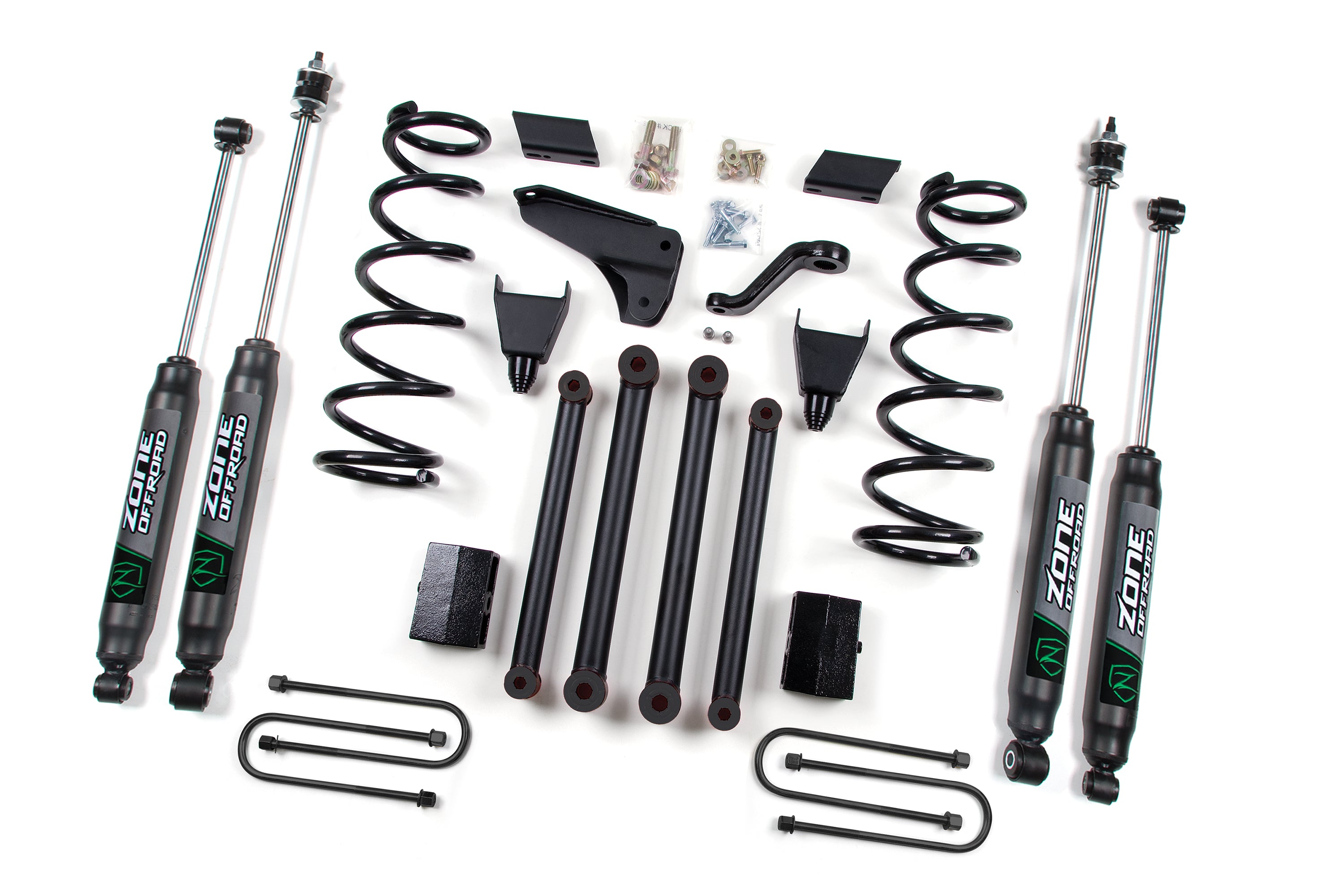

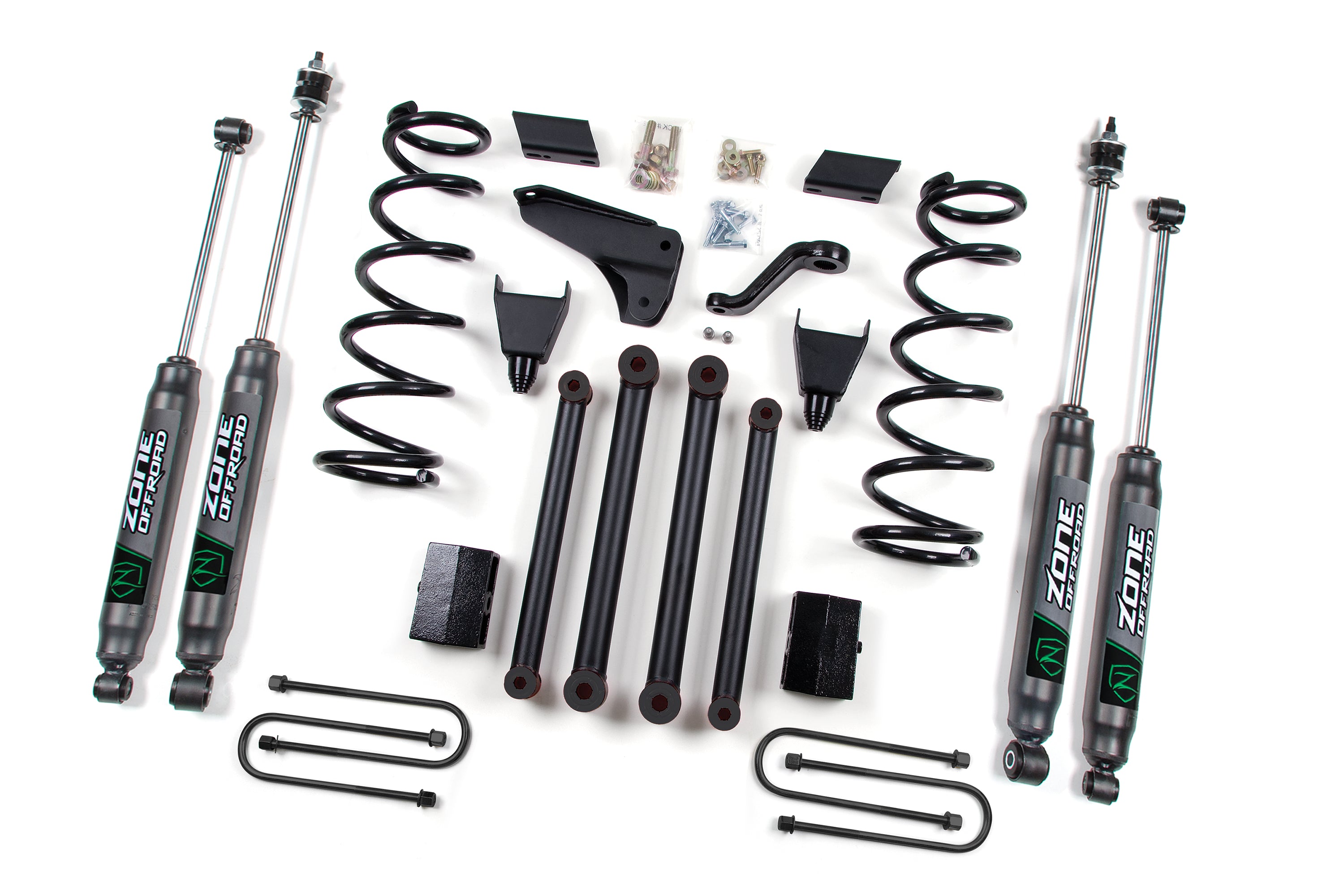

5 Inch Lift Kit | Dodge Ram 2500/3500 (10-13) 4WD
SKU:
ZOND16F
×
- $1,230.65
- Unit price
- per
Go big and go anywhere with this 5" Lift Kit for your truck that gives you clearance for huge tires up to 36". This kit has everything you need to raise and level your 4WD 2010 - 2013 Dodge / Ram 2500 / 3500 Truck. If you're going to do it, do it right.
Features & Benefits
- 100% bolt-on design for easy installation.
- Bump stop extensions properly limit up-travel, protecting your vehicle.
- Heavy-duty upper and lower control arms improve strength and articulation while correcting caster.
- Heavy-duty front track bar bracket correctly positions front axle under vehicle.
- Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
Rear Axle Option
The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting silver coated finish
- Will work with Power Wagon models with the addition of sway bar link kit D5301.
- Power Wagon models came factory with a 2" taller ride height, so net lift gain will be 3" over stock.
- This truck was produced using rear axles of differing diameters; measure the diameter of your rear axle to ensure proper kit selection in configuration.
- Factory wheels fit when paired with factory / original equipment tire size.
- This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
- Gas Engine? Gas models may sit slightly taller than the advertised lift height due to lighter weight of engine.
- These trucks are typically between 1" and 3" tail high from the factory. Please measure your trucks factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to 1" tail high from the factory order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory order the 3" rear coils for a more level stance.
- This truck was produced with different rear axles. Be sure to measure the diameter of your rear axle before ordering.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.
