4 Inch Lift Kit w/ Radius Arm | Ford F350 Super Duty DRW (20-21) 4WD | Diesel

SKU: ZONF73F

×
$1,530.45
Subtotal: $1,530.45

I have read the Important Notes and Verified my Vehicle Fitment

https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/zon_F60F_F61F_F73F_F74F.jpg

4 Inch Lift Kit w/ Radius Arm | Ford F350 Super Duty DRW (20-21) 4WD | Diesel

$1,530.45

4 Inch Lift Kit w/ Radius Arm | Ford F350 Super Duty DRW (20-21) 4WD | Diesel

$1,530.45
Shock Option: FOX Adventure Series

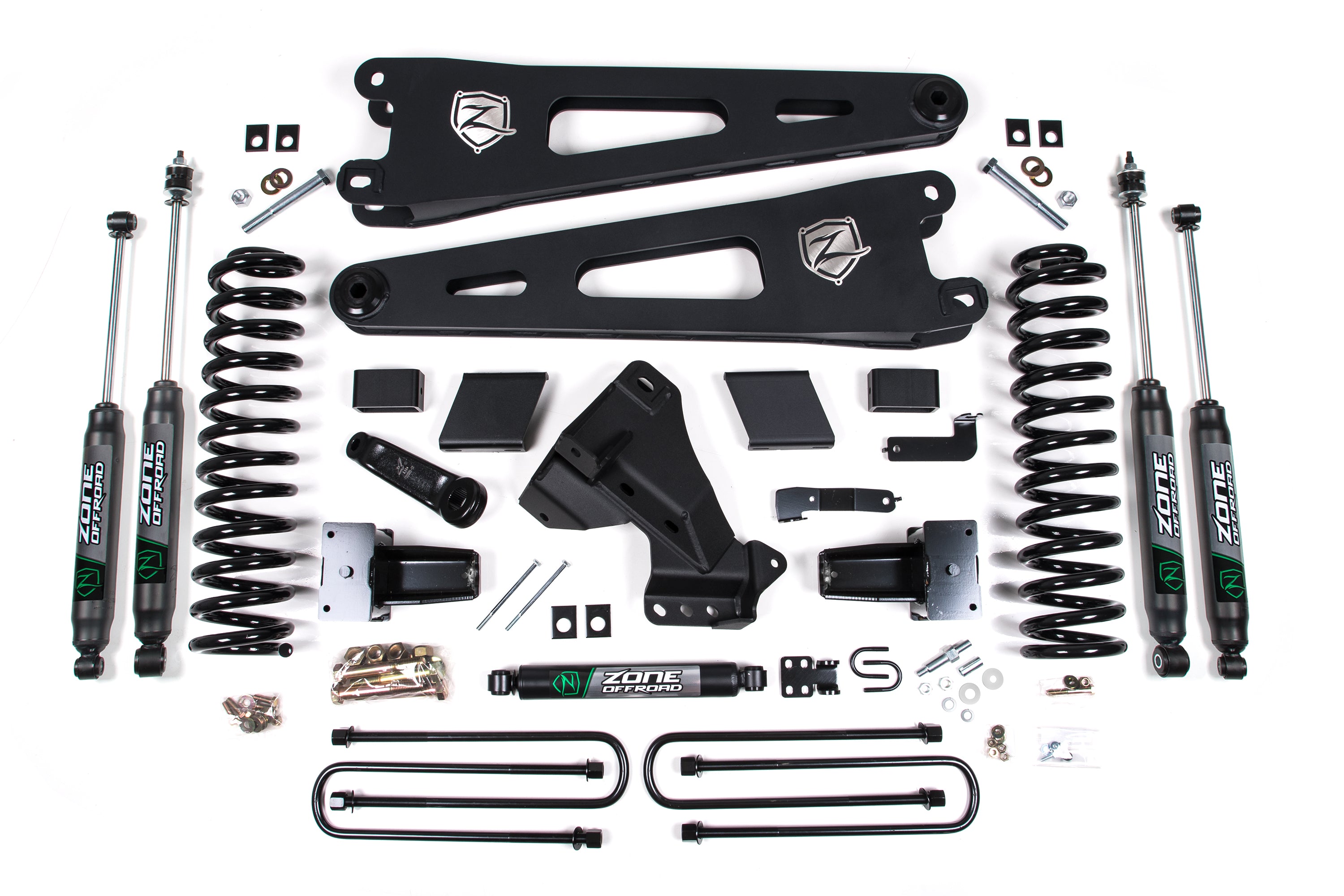

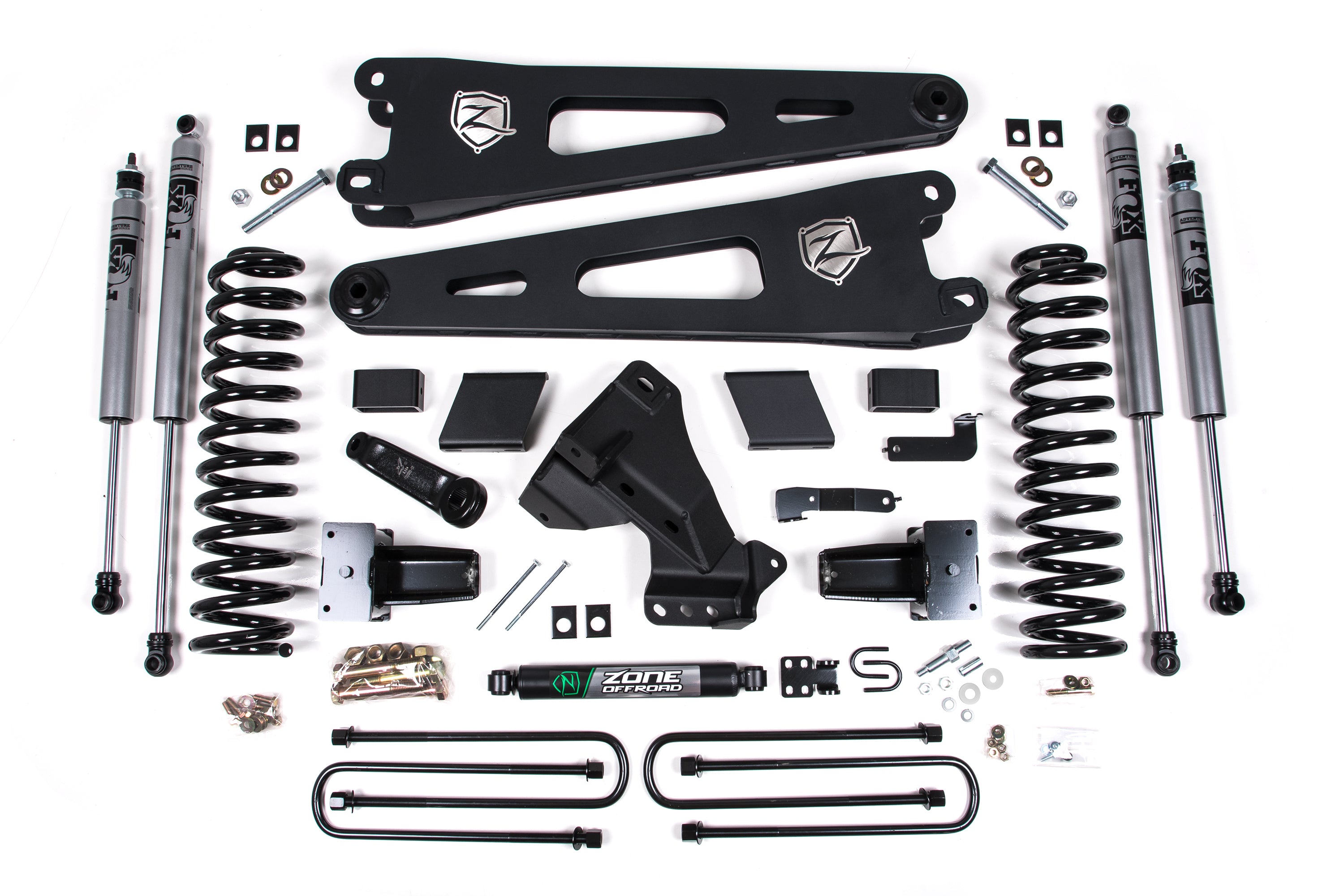

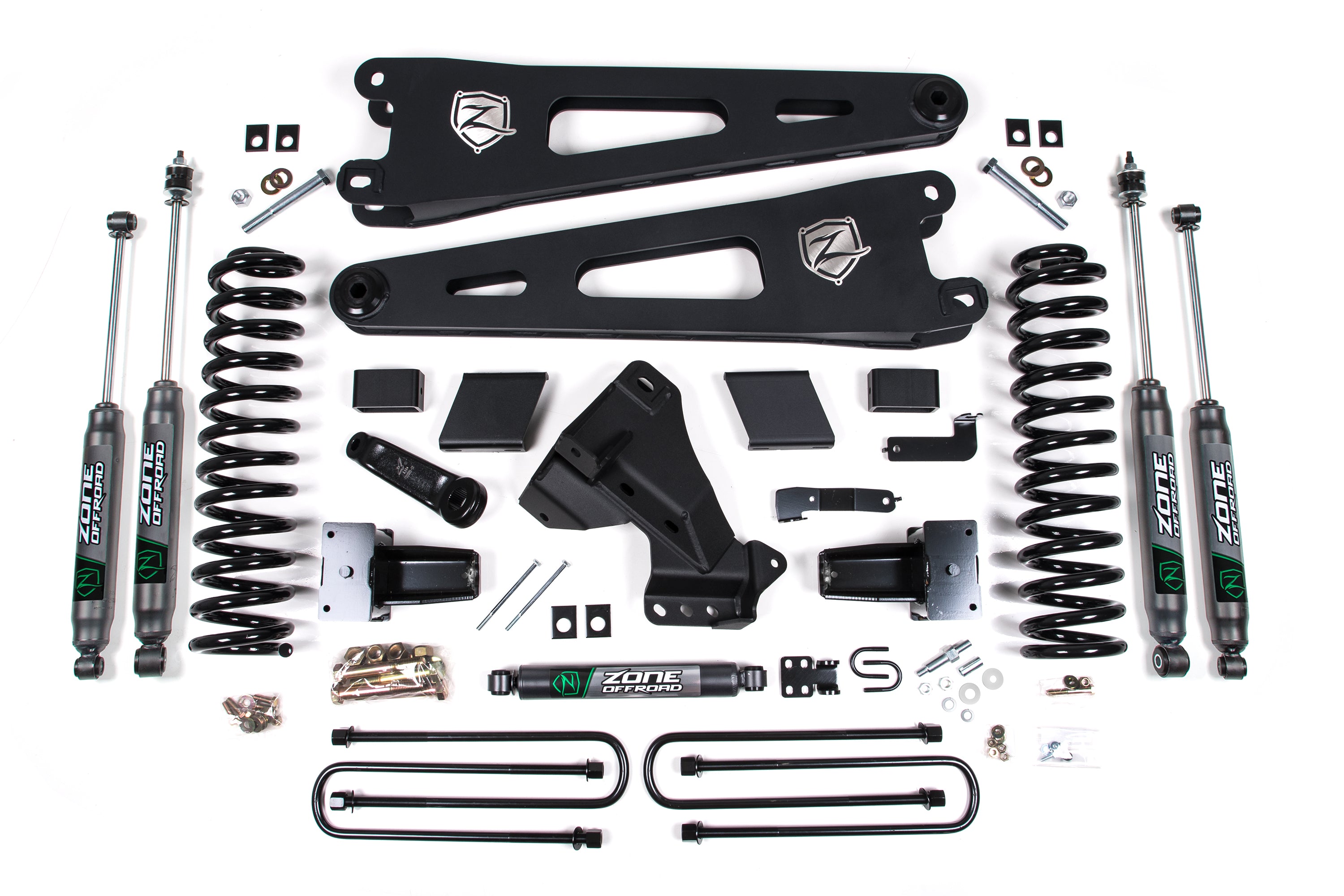

For optimal strength, ground clearance and styling the 4" radius arm system is the way to go. This complete kit is designed to lift and level the stance with room for up to 37" tires to be installed. Front lift comes from a pair of front full length coil springs to pair with your choice FOX 2.0 adventure series shocks for optimal ride quality. The front axle is repositioned using a pair of heavy duty replacement radius arms that bolt in place of the factory stamped steel arms. These arms are built from high strength 1/4" steel, boxed and fully welded with large 2.5" greaseable bushings to isolate road vibrations and improve ground clearance over drop bracket kits. Steering correction comes from a forged drop pitman arm to improve operating angle while a massive 1/4" steel fabricated track bar drop bracket is used to recenter the front end and keep the steering linkage angles in phase for predictable handling. Also included for the front are sway bar relocation brackets, brake line drop brackets, bump stop extensions, and single steering stabilizer kit. In the rear these kits retain the factory overload equipped leaf springs and lift is provided via a replacement lift blocks and longer u-bolts specific to the DRW models. Finishing off the rear is a rear brake line bracket and tour choice of rear gas shocks to match the front of the truck.

Features & Benefits

  • Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance.
  • Forged pitman arm to correct steering angles.
  • Heavy duty fabricated track bar relocation bracket to re-center front axle.
  • Full length Diesel/ Gas specific coil springs for a smooth ride.
  • Rear lift is specific to dually trucks using U-bolts that are sized correctly for length as well as block height to level the truck and a bump stop extension on the frame

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 22 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Shock Option

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
  1. Dually Models Only.
  2. Diesel Models Only.
  3.  Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  4. When adding the Dual Stabilizer option you will get the dual opposing steering stabilizer in addition to the single OE Replacement.
  5. Due to taller factory ride height, Tremor models will not net full advertised lift height.
  6. Final ride height will be the same as standard models


Wheel and Tire:

  • 37x12.50 tires may require minor trimming.
  • Factory wheels fit when paired with factory / original equipment tire size.
