4 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (11-16) 4WD | Gas
SKU:
ZONF26F
×
- $1,375.50
- Unit price
- per

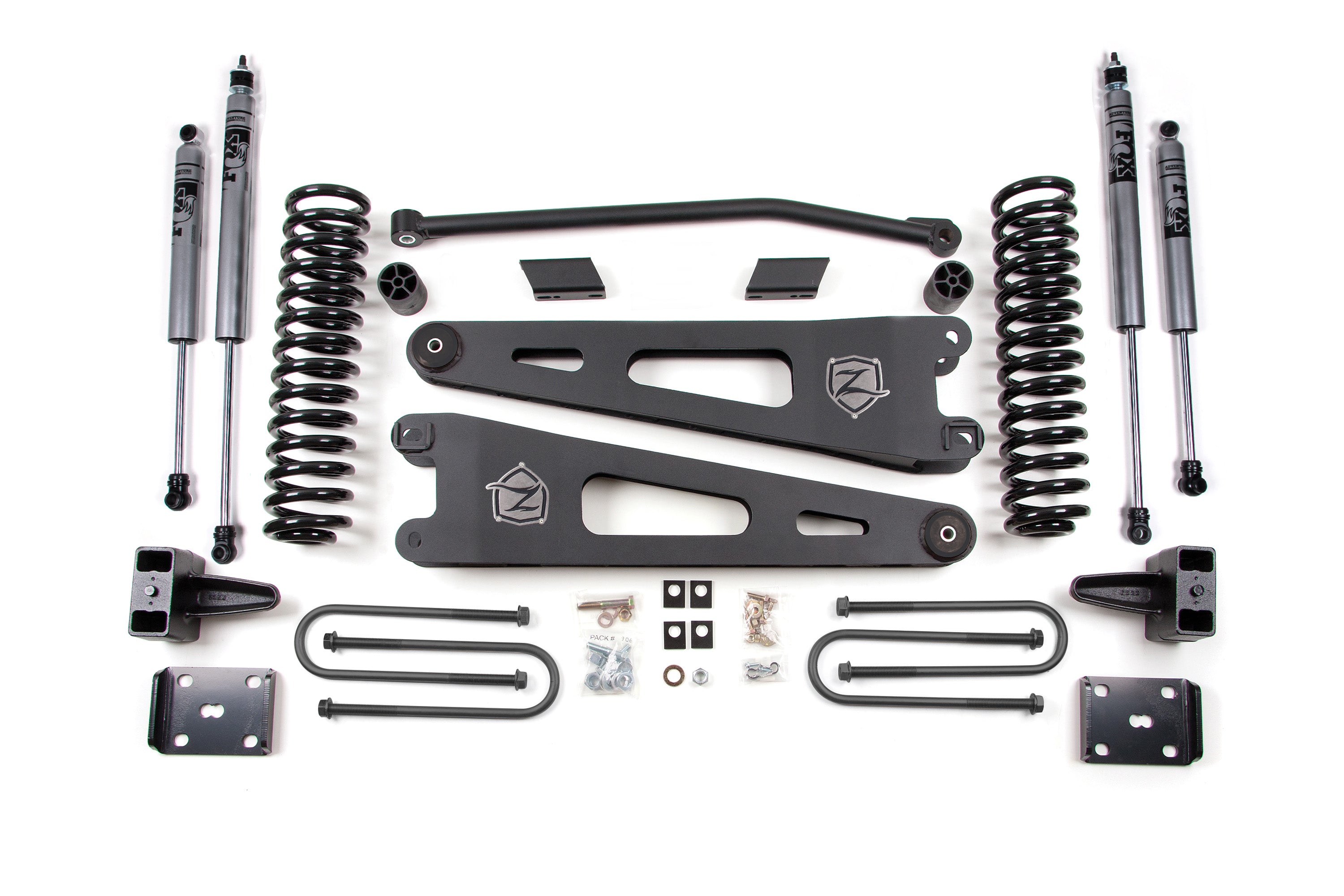

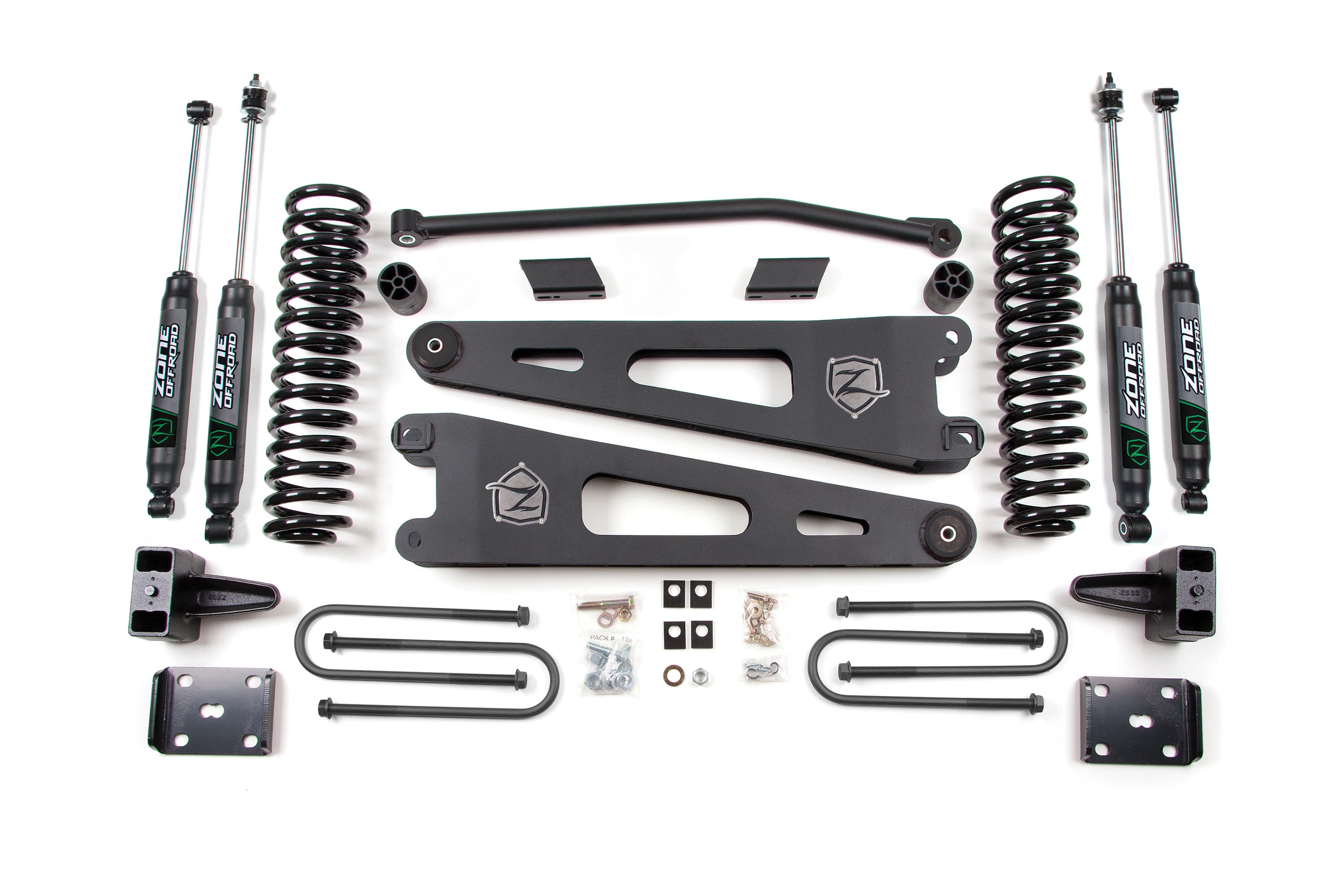

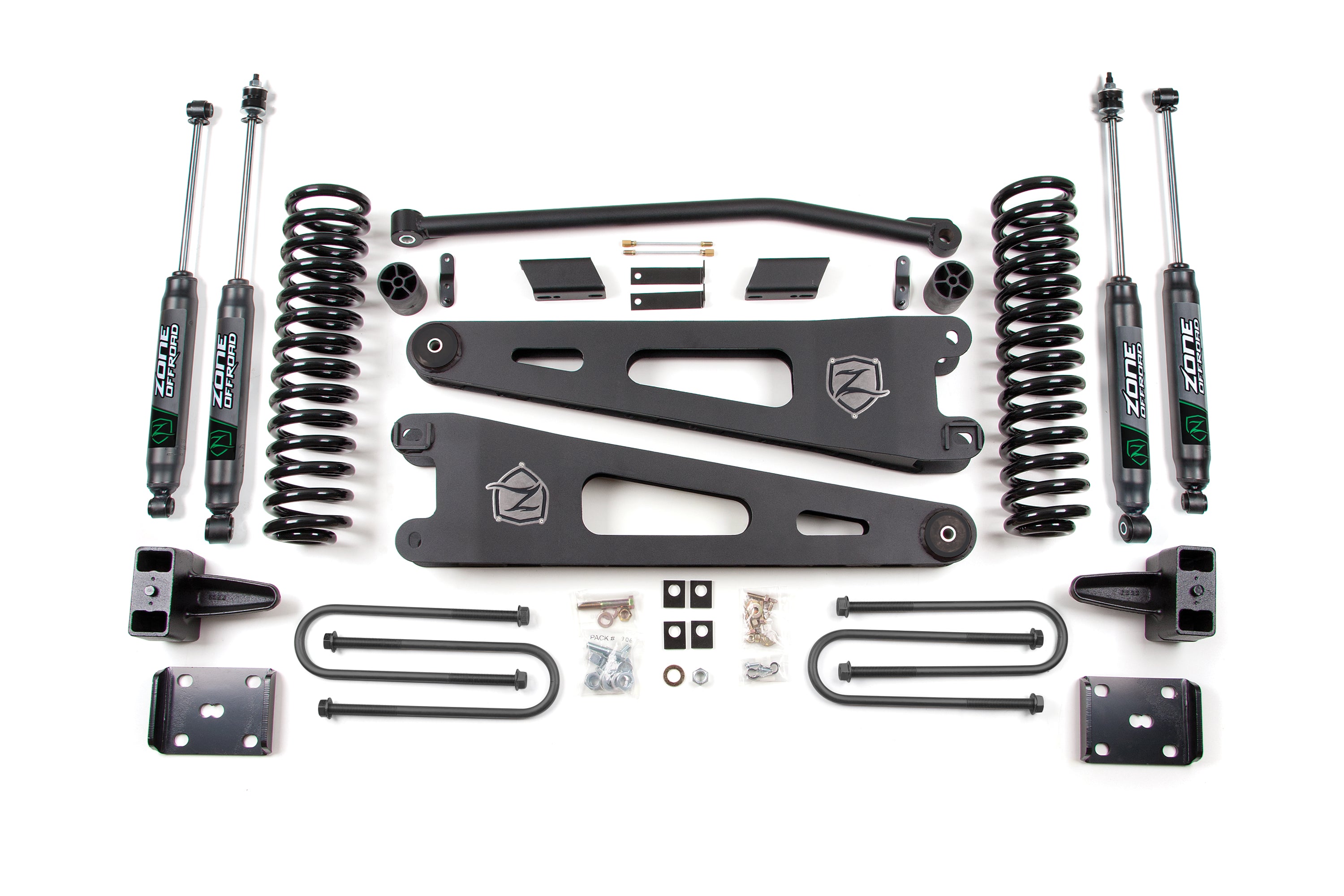

Turn heads and stand out from the crowd with this 4" Radius Arm Suspension Kit that lets you clear 35" tires. You'll definitely make a statement with this kit, complete with rear cast blocks for your 4WD 2011 - 2016 Ford F-250 / F-350.
Features & Benefits
- Full length replacement coil springs add additional ride height while maintaining ride quality.
- Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
- High-strength, 1/4" steel construction radius arms correct caster, improves tire clearance, and maximizes ground clearance. High-strength, black e-coated U-bolts.
- Rear lift block and longer U-bolts for easy installation and level stance.
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Rear Lift Option
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.
- Factory Overload – 3 Leaf
- NO Overload – 2 Leaf
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- Although extremely rare, front and/or rear drive-line vibration may occur and require drive-line modification.
- Factory wheels fit when paired with factory / original equipment tire size.
- This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
- This lift will require replacing your truck's factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
- Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
