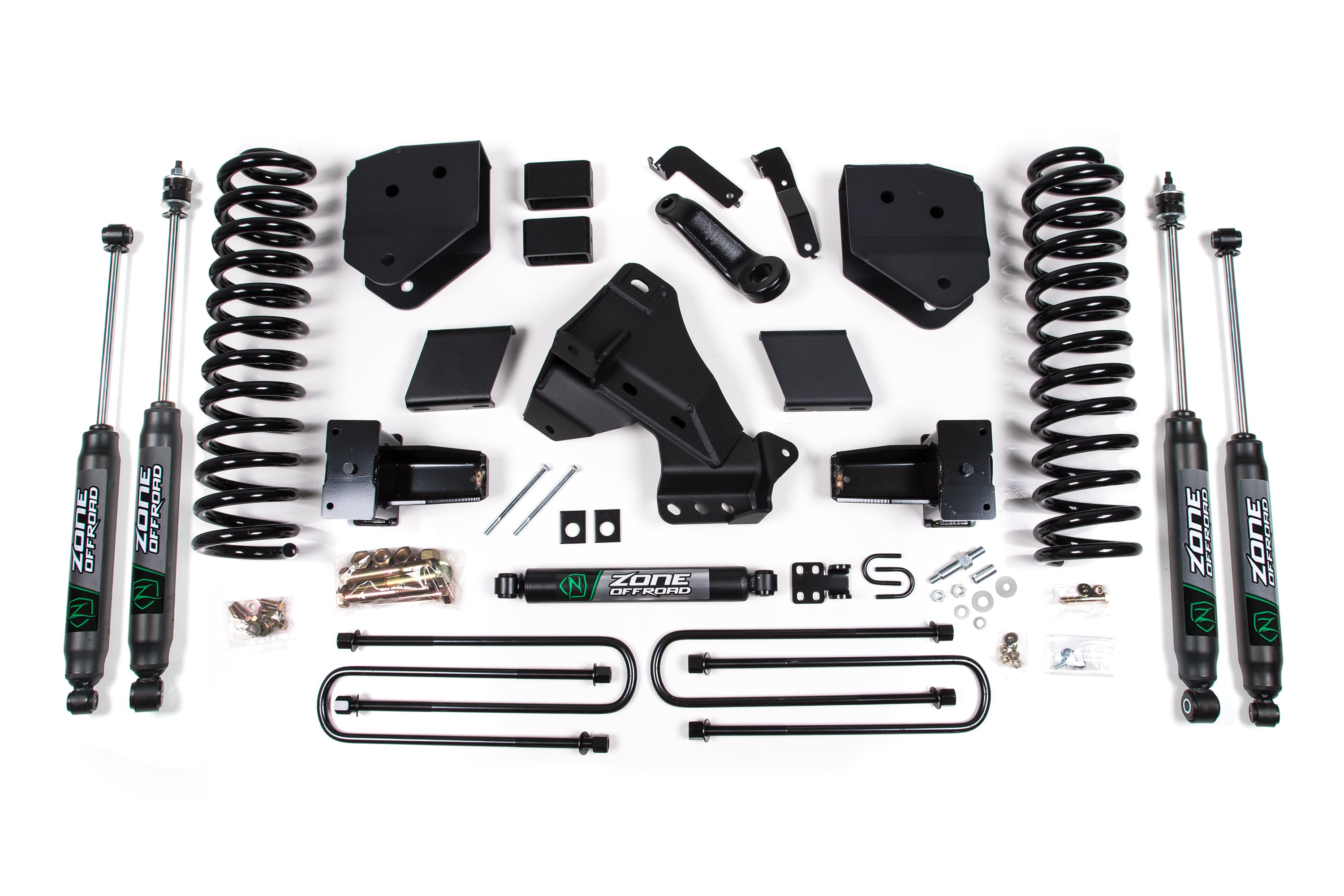

4 Inch Lift Kit | Ford F350 Super Duty DRW (20-21) 4WD | Diesel
SKU:
ZONF71F
×
- $1,250.55
- Unit price
- per
Zone Offroad now offers a suspension lifts for the 2020 Ford F350 Super Duty 4WD DRW trucks. These kits are based on the kits for the 2005-2021 Ford Super Duty, updated specifically for use on the DRW models. These new 4" lift kits are available for gas and diesel applications, as well as offered in standard (radius arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Features & Benefits
- Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance.
- Forged pitman arm to correct steering angles.
- Heavy duty fabricated track bar relocation bracket to re-center front axle.
- Full length Diesel/ Gas specific coil springs for a smooth ride.
- Rear lift is specific to dually trucks using U-bolts that are sized correctly for length as well as block height to level the truck and a bump stop extension on the frame.
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 22 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish

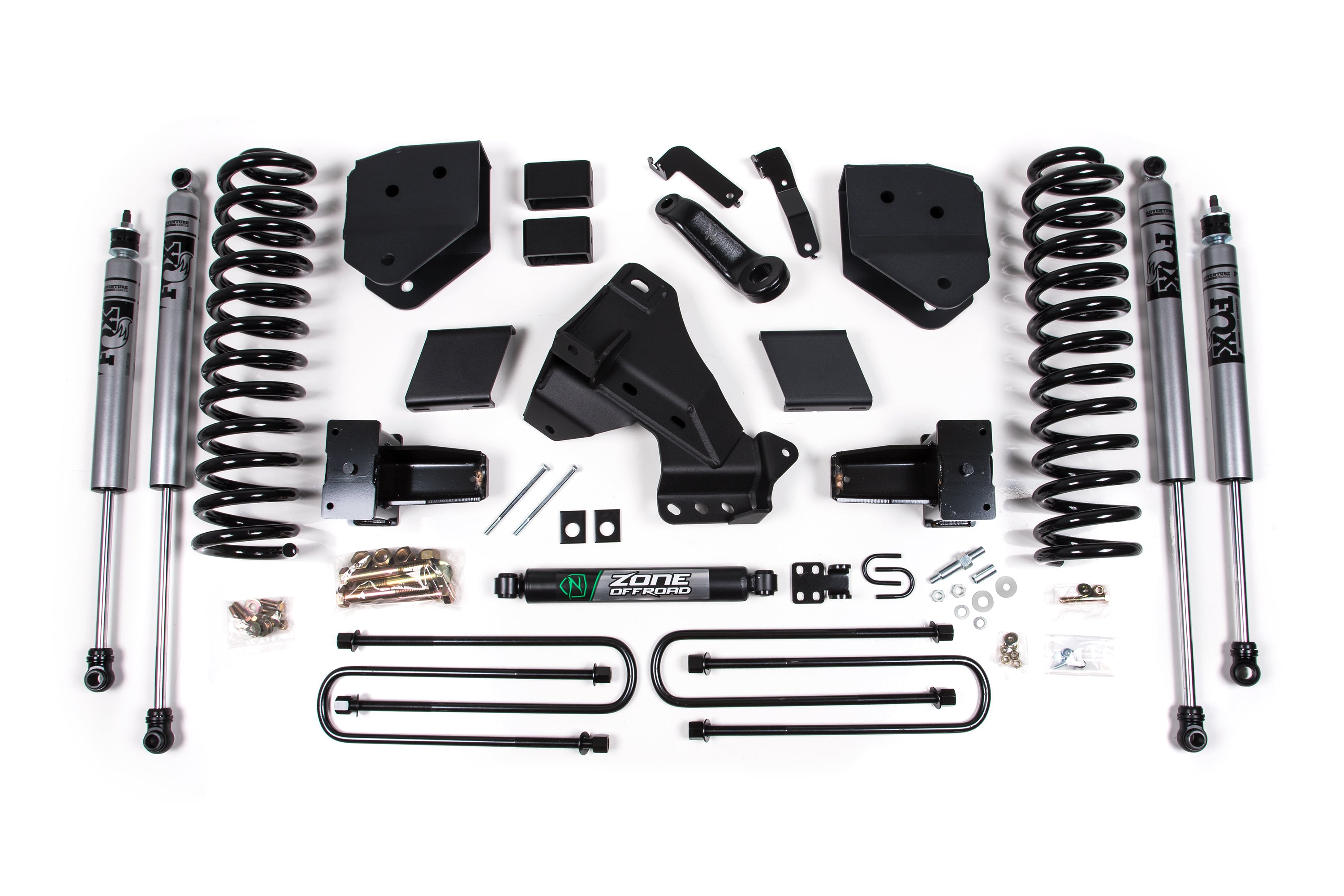

FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- Dually Model Only.
- Diesel Model Only.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.
- Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
Wheel and Tire:
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory / original equipment tire size.
