4.5 Inch Lift Kit W/ Radius Arm | Ram 2500 (14-18) 4WD | Diesel

Zone Offroad
SKU: ZOND55F
Kit Component List

Select Vehicle

Enter Year, Make, Model to verify Fitment

×
$1,506.50
Subtotal: $1,506.50

I have read the Important Notes and Verified my Vehicle Fitment

Save to Build List

Find a Local Installer
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zon_D55F_D63F.jpg

4.5 Inch Lift Kit W/ Radius Arm | Ram 2500 (14-18) 4WD | Diesel

$1,506.50
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zon_D55N_D63N.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zone_shock_card_fox_adv_series.jpg
https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/zone_shock_card_nitro_series.jpg

4.5 Inch Lift Kit W/ Radius Arm | Ram 2500 (14-18) 4WD | Diesel

$1,506.50

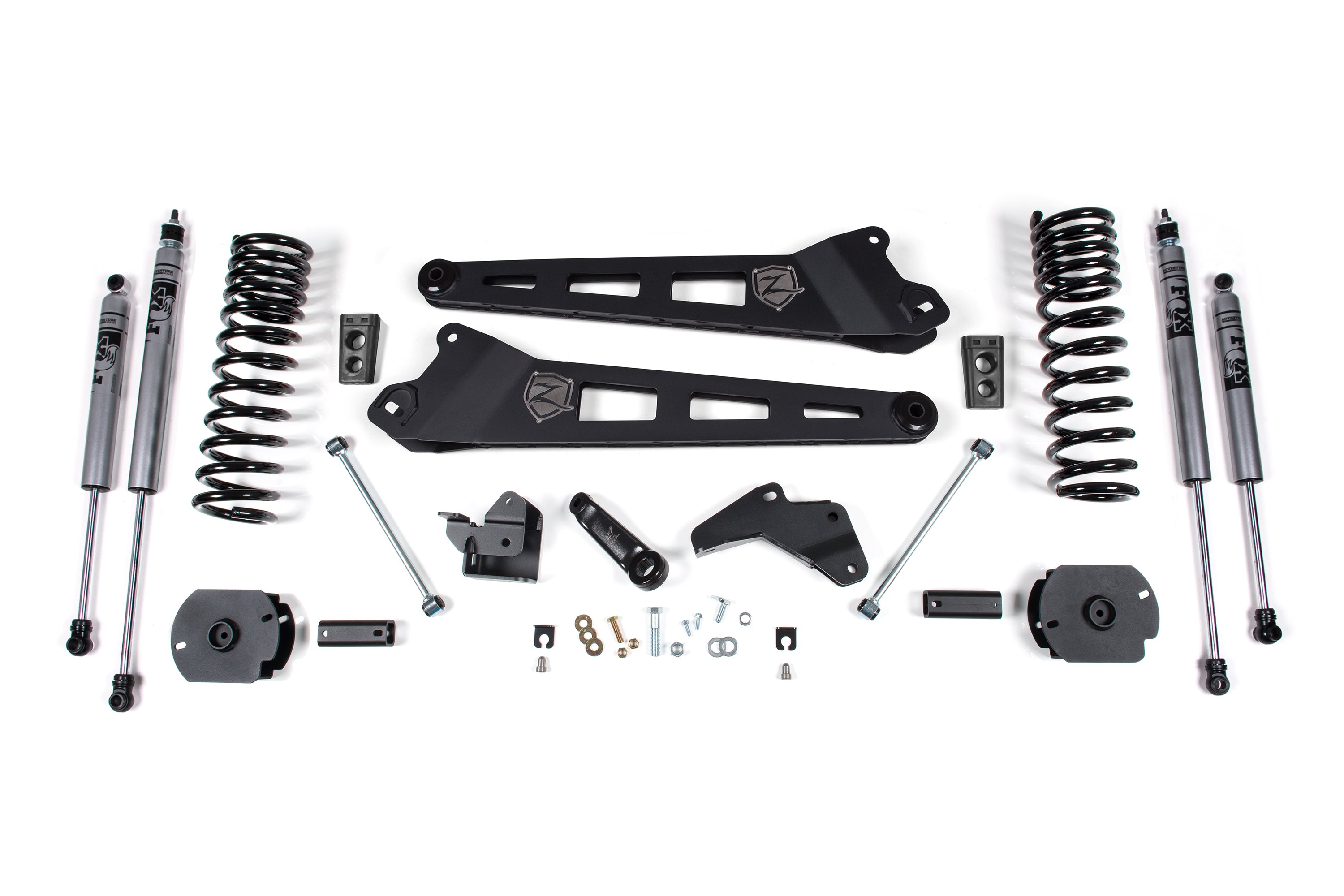

Shock Option: FOX 2.0 Adventure Series
OVERVIEW
Take your RAM 2500 to new heights with this 4.5" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Features & Benefits

  • Progressive rate front coil springs improve ride quality and off-road performance.
  • HD radius arm to correct caster while maximizing ground clearance.
  • Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle.
  • Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles.
  • Rear coil spacers, bump stop extensions, track bar bracket and sway bar links to level the stance and correct suspension geometry

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5.75 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.75 in. Backspace

Shock Option

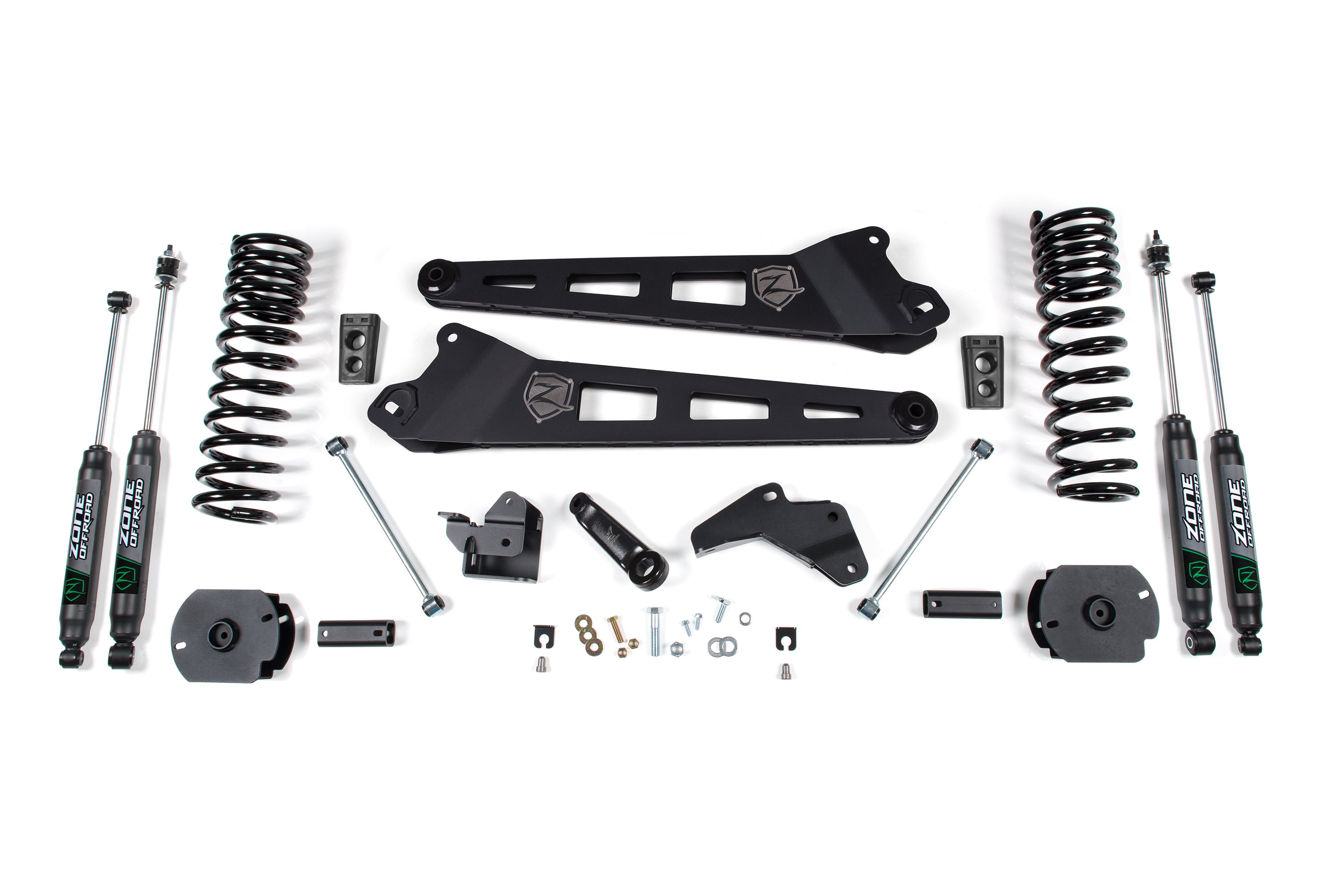

Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

FOX 2.0 Adventure Series

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting silver coated finish
IMPORTANT NOTES
  1. Although very rare, front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit.
  2. Optional t-case indexing ring kit recommended to reduce front driveline angle.
  3. Does NOT work for models with factory rear airbag suspension.
  4. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  5. Factory wheels fit when paired with factory / original equipment tire size.


INSTALLATION

Installation Guides :

Download Guide 1

Download Guide 2

Est. Install Time :

6 hrs

Difficulty Level :

Moderate
SPECIFICATION
  • Front Lift Method : Coil Spring & Drop Bracket
  • Front Lift Height : 4.5"
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 2.5"
  • Shocks Included : Yes
FITMENT
YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2014Ram2500Big Horn4WDDIESELN/A
2014Ram2500Laramie4WDDIESELN/A
2014Ram2500Laramie Limited4WDDIESELN/A
2014Ram2500Laramie Longhorn4WDDIESELN/A
2014Ram2500Lone Star4WDDIESELN/A
2014Ram2500Outdoorsman4WDDIESELN/A
2014Ram2500SLT4WDDIESELN/A
2014Ram2500ST4WDDIESELN/A
2014Ram2500Tradesman4WDDIESELN/A
2015Ram2500Big Horn4WDDIESELN/A
2015Ram2500Laramie4WDDIESELN/A
2015Ram2500Laramie Limited4WDDIESELN/A
2015Ram2500Laramie Longhorn4WDDIESELN/A
2015Ram2500Lone Star4WDDIESELN/A
2015Ram2500Outdoorsman4WDDIESELN/A
2015Ram2500SLT4WDDIESELN/A
2015Ram2500ST4WDDIESELN/A
2015Ram2500Tradesman4WDDIESELN/A
2016Ram2500Big Horn4WDDIESELN/A
2016Ram2500Laramie4WDDIESELN/A
2016Ram2500Laramie Limited4WDDIESELN/A
2016Ram2500Laramie Longhorn4WDDIESELN/A
2016Ram2500Limited4WDDIESELN/A
2016Ram2500Outdoorsman4WDDIESELN/A
2016Ram2500SLT4WDDIESELN/A
2016Ram2500ST4WDDIESELN/A
2016Ram2500Tradesman4WDDIESELN/A
2017Ram2500Big Horn4WDDIESELN/A
2017Ram2500Laramie4WDDIESELN/A
2017Ram2500Laramie Limited4WDDIESELN/A
2017Ram2500Laramie Longhorn4WDDIESELN/A
2017Ram2500Limited4WDDIESELN/A
2017Ram2500Outdoorsman4WDDIESELN/A
2017Ram2500SLT4WDDIESELN/A
2017Ram2500ST4WDDIESELN/A
2017Ram2500Tradesman4WDDIESELN/A
2018Ram2500Big Horn4WDDIESELN/A
2018Ram2500Laramie4WDDIESELN/A
2018Ram2500Laramie Limited4WDDIESELN/A
2018Ram2500Laramie Longhorn4WDDIESELN/A
2018Ram2500Limited4WDDIESELN/A
2018Ram2500Outdoorsman4WDDIESELN/A
2018Ram2500SLT4WDDIESELN/A
2018Ram2500ST4WDDIESELN/A
2018Ram2500Tradesman4WDDIESELN/A
