RT Pro is proud to present the first lift kit that WILL NOT cause any CV issues for the remainder of the life of your RZR. We know this because we've tested the kit and can honestly say the rear will not droop any lower than the factory setup. We achieve this by relocating the UPPER shock mounts and not the lowers. This method improves the shock angles which require a lower spring rate to hold the vehicle at ride height. When retaining the stock springs however, the ride height is raised. This kit will allow you to back the "clickers" on your shocks down and still have the desired height needed for that additional ground clearance. So you get two things with this kit. A taller ride height PLUS an improved ride! Actual height gains will vary but expect approximately 1.5" rear lift and 2" front. We've found our best performance with these machines by setting the fronts 0.5-1" taller.

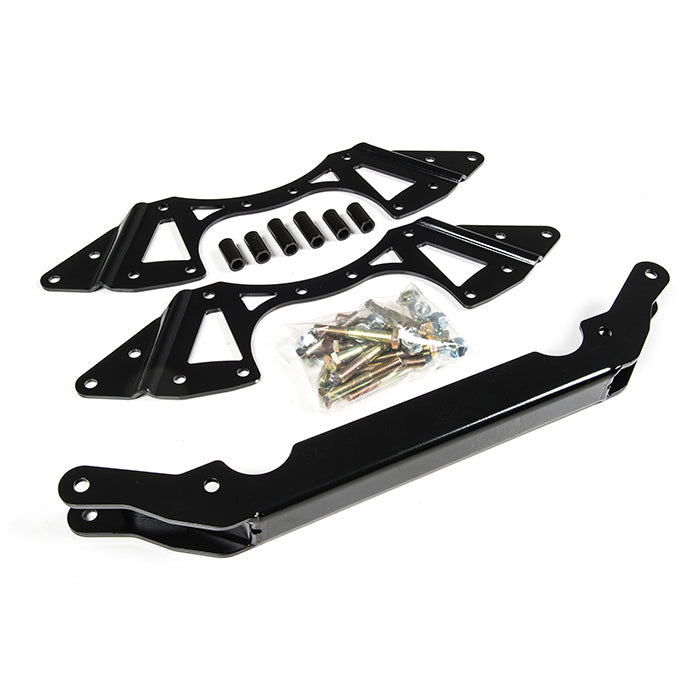

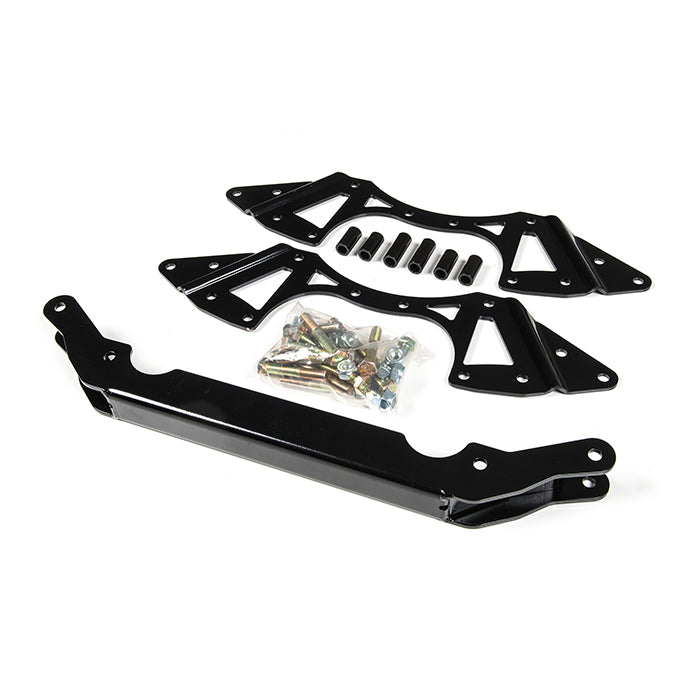

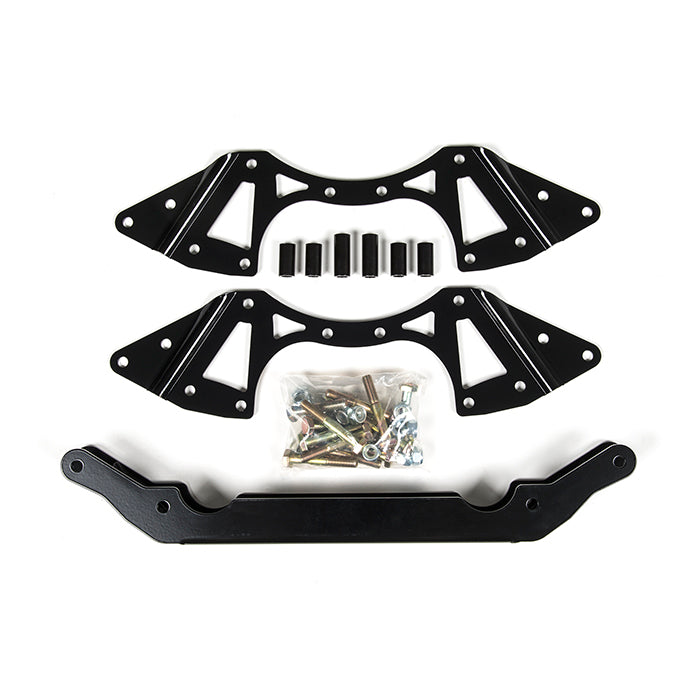

This kit is all bolt-on and the installation can be completed in less than 1.5 hours. There are four holes to be drilled in the rear of the frame for the ultimate in strength but this job is made simple by the very thorough instructions this kit comes with. This kit comes complete with all necessary components, hardware and instructions for complete installation. Kits are powdercoated black.
FAQ
We get a lot of questions about this lift kit. Here is a comprehensive list of the most frequent questions we answer. We decided to put the answers here in one place to try and save everyone some time and confusion. Please read through all of these before calling with questions:
Q. I've heard about lift kits that relocate the lower shock mounts and they are cheaper. Why is your's different?
A."Lower Relocation" style lift kits add more angle to your CV joints which will cause failure. The sellers always say they don't and others have said they haven't had issues but we've heard otherwise a LOT through the years and the laws of physics can prove it... This style kit simply moves the stroke of the suspension down lower. This means hubs are lower at full extension. The CV's have to go beyond they're intended limits to travel with the hubs and this is what causes CV problems. Our kit controls the amount of droop the suspension has to eliminate this issue.
Q. I've heard about lifting the machine with different/stiffer springs. Why isn't this the same thing as your lift kit?
A.Improved springs are great and we sell those too. The problem with "lifting" with springs is the ride IS made harsher and much more stiff. Again, this is physics at work. You can get the lift and springs will not increase the CV angle at full extension but there is a trade off.
Q. What's the largest tire size I can run with this lift kit?
A. This kit seems to clear any 30" tire we've tried just fine. Some 31" tires will fit as well.
Q. Will this kit make my RZR narrower / wider?
A. It will actually make it narrower. Usually 1/2-3/4" per side. An easy way to see how this works is to jack the machine up about 2" higher than it currently sits and watch the arms droop down and bring the hubs closer to the center.
Q. Will this lift kit make my RZR tipsier?
A. Any time you raise a vehicles center of gravity will get a little tipsier due to the weight getting higher. However, our kit will definitely give the least effect. Part of our design was done to counter act the raised center of gravity. By spacing out the distance from upper shock mount to mount, we are able to essentially "trick" the roll axis of the machine by requiring more leverage to make the body roll. At the same time this is happening, the shocks are also a bit better positioned to hold up against the weight of the vehicles weight shifting due to the improved operating angle of the shock. Ultimately, the final performance ends up being, in most customer's eye's, equal to or better than OEM handling and tipsiness.
Q. Will this kit cause issues with the CV joints on a 2011+ RZR?
A. This is as common a question as it is a good question. There are many lift kits out there which bind CV's and cause lots of issues down the road. Our kit is not one of them. There are a lot of people talking about CV issues with the 2011 RZR's. The truth is Polaris did go to a smaller axle and CV assembly which makes it a bit weaker. The geometry of the suspension however, has not changed at all. Therefore our kit works the same way as it always has. The CV's max operating angle is still the same so there is no bind. The issue really comes into play when people start adding larger tires or more power. The drive axles on the 2011 can't handle as much as the old ones so they break or wear out and start acting like they're binding. This all boils down to an issue with the axles and not so much the lift kit.
Q. Doesn't the more vertical position of the shocks/springs reduce total suspension travel?
A. The more vertical shock angles will reduce the travel slightly but in this case it's only about half an inch. We've found the change to be negligible. The travel is taken from the up-stroke so the suspension actually bottoms out with a half inch MORE ground clearance. The other aspect to consider is the improved shock geometry puts the shock where it should be originally and this makes for improved handling and stability which nicely counter acts the raised center of gravity. We firmly believe in the theory that good travel is better than more travel.
Q. What should I do first? A lift kit or replacement springs? Aren't the OEM springs junk anyways?
A. We feel if any changing will be done to a suspension, the first thing to do is fix the geometry. This will make everything else you do afterwards different. If you put on a spring kit to get lift and then add a lift kit later, the ride will most likely be harsh. If you start with a lift and then add springs we can recommend the best rate option to you then. The lift will change and improve the geometry. The springs will adjust the ride height only. Aftermarket springs do improve ride and handling in our case but their primary purpose is just that. Springs are not necessarily to designed to lift the vehicle. The lift is a byproduct. We are aware there are other companies who are trying to imply their springs will do everything at once and get a lift but you must consider the same laws of physics apply to them as well.
Q. Will this kit work with aftermarket/dual exhaust?
A. We use to have a different rear bracket for the Muzzy's Exhaust to clear. Now we have adapted a more universal kit to clear most aftermarket exhaust. We've yet to find a system that can not be made to work with our lift kit. Some require modification of the exhaust brackets but never our kit.
